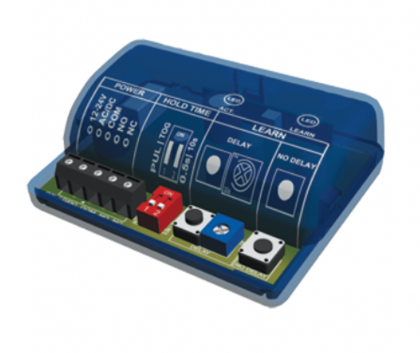

Hager 2-659-0183 Receiver - 433 MHz Receiver

Hager 2-659-0183 Receiver - 433 MHz Receiver

Specifications

Applications

• Used for wireless activation of any type of automatic doors
• Activated by programmed 433MHz wireless transmitters
• Optional delay used to sequence door openings in vestibule applications
• Typically installed inside auto operator housing

Certifications : CE, FCC, IC

Electrical Specifications

• 30mA @ 12 to 24 VAC/VDC Input Voltage
• 1A @ 30VDC / .3A @ 60VDC / .5A @ 125VAC Relay Contact
• Radio Control Type: DigitalEmitted Radio Power: -28.7dBm (transmitter)

Features

• Activation of transmitter utilizes a rolling code providing a protected signal
• Receiver can be programmed with up to 100 transmitters
• Optional delay or no delay programming
• Toggle or pulse mode selectable by DIP switch
• Diagnostic LED for troubleshooting

Frequency : 433 MHz

LED Indicators:

• Red = Relay Activity
• Blue = Receiver / Transmitter Learn

Product Description : 433 MHz Wireless Receiver

Product Number : 2-659-0183

Size:

• 2.75" (Height)
• 2.125" (Width)
• 1" (Depth)

Warranty : 1 Year

Accessories

• 2-659-0184 - 3V Wireless Transmitter (433MHz)
• 2-659-0185 - 9V Wireless Transmitter (433MHz)
• 2-659-0186 - 3V Handheld Wireless Transmitter (433MHz)
