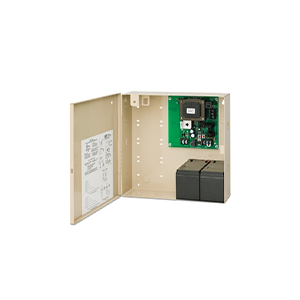

Hager 2909 — 12/24 VDC 2 Amp Regulated Power Supply for Commercial Door Hardware

The Hager 2909 is a UL-listed, filtered and regulated DC power supply designed to drive electric door hardware from a single, reliable source. Accepting standard 120 VAC line-voltage input, it delivers a field-selectable 12 or 24 VDC output at 2 amps continuous — covering the vast majority of access control and electrified opening applications from one part number. Compatible loads include electric strikes, magnetic locks, power transfer loops (EPT), and low-energy operators. For standby protection during utility outages, the 2909 is compatible with the Hager 2-679-0661 5 Amp-Hour battery backup (sold separately).

Key Features & Benefits

• Field-Selectable Output Voltage: Jumper-selectable 12 VDC or 24 VDC output lets a single unit serve fail-safe and fail-secure locking devices across a wide range of access control installations.
• 2 Amp Continuous Rating: Regulated, filtered DC output rated for continuous duty — sufficient headroom for multiple low-draw devices or a single high-draw electric strike or maglock.
• Standard 120 VAC Input: Connects directly to any standard commercial line circuit; no step-down transformer required.
• Battery-Backup Compatible: Works with the Hager 2-679-0661 5 Ah battery backup module for uninterrupted door hardware operation during power outages.
• Over-Current Protection: Built-in protection guards the supply and connected hardware against electrical faults and current surges.
• UL Listed: Meets the listing requirements demanded on commercial and institutional projects.
• Compact Enclosure: Space-saving form factor suited for header mounting, above-ceiling J-box installation, or dedicated electrical cabinets.

Applications

The Hager 2909 is well suited for commercial, institutional, and healthcare access control projects where a dependable, code-listed DC power source is required. Typical pairings include electric strikes (fail-safe or fail-secure), electromagnetic locks, electrified power transfers on mortise-mount or continuous-hinge openings, and Hager or compatible low-energy operators. It is equally at home powering a single high-draw maglock or serving multiple lower-draw devices on the same circuit.
