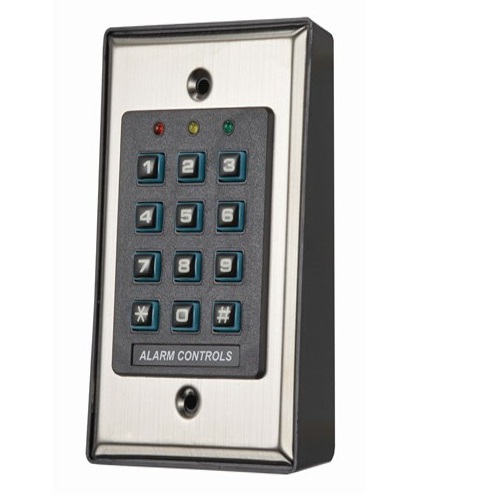

Alarm Controls KP-100A Surface or Recessed Mounted Digital Keypad
Standard Features:
Single gang flush mount stainless steel plate with surface mount back box
True 10-digit operation (10 digits plus * and # keys)
Capacity up to 1000 user codes, length from 4 to 8 digits
50 visitor codes, programmable for one time use or with time limit
Fully programmable from the keypad
Programmable passage and false code lockout mode capabilities
Built-in tamper switch
Red, green, and yellow LEDs for status and programming feedback
Fail safe or fail secure capable
Request to Exit (REX) input
Audible and visible key press; keys are backlit for visibility
For indoor applications only
3 year warranty
Dimensions:
Keypad: 2-3/4"W x 4-1/2" H x 5/32" D
Surface Mount Back Box: 2-13/16" W x 4-5/8" H x 1-7/16" D
Electrical:
Operating Voltage: 12-24 VAC/VDC [+/- 10%]
Operating Current: 12 VDC: 40mA at rest, 100mA active; 24 VDC: 70mA at rest; 50mA active
Output Relay: 1 SPDT dry contacts; 5A/30 VDC Max
REX Input: N/O dry contact; 1mA/5VDC Max
Tamper Switch: N/C dry contact; 50mA/24VDC Max
Operating Temperature:
-4°F to +158°F [-20°C to +70°C]
Humidity: 5-95% relative humidity non-condensing
| Brand | Alarm Controls |
| Keypad Options | Indoor |
| Voltage | 12 VDC, 24 VDC |
| Key Pad Mounting | Surface, Recessed |
