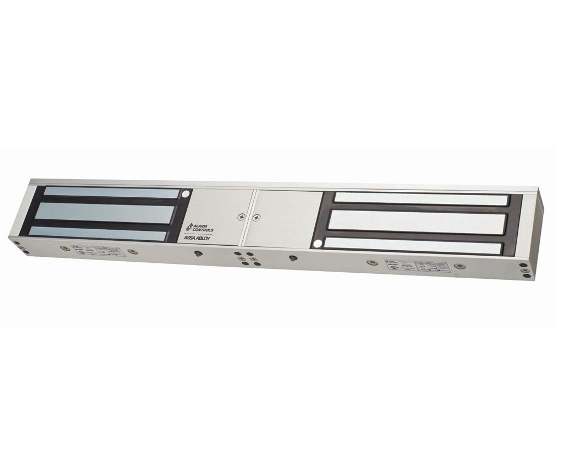

Alarm Controls 1200D Double Door Magnetic Lock, 1200 lb, Clear Anodized

Alarm Controls 1200D Double Door Magnetic Lock, 1200 lb, Clear Anodized

Built to provide 1200 lbs of holding force, per door, for double door configurations, this easy to install magnetic lock includes LED status indicator, bond sensor and door status sensor to signal a powered and securely locked door. Ideal for interior or exterior applications.

Standard Features

• Built-in arc suppression
• Instant release, no hysteresis
• Self-drilling TEC screws
• Non-aluminum parts are plated to resist corrosion
• E-Z mount header bracket and template provided for easy installation, no special tools required
• Can be used with any access control system
• Bond sensor and door status sensors plus bi-color LEDs signal a powered and securely locked door
• Clear anodized (US28) finish standard
• Limited lifetime warranty

Certifications & Listings:

• UL 294 listed
• UL 10C fire rated
• CAN/ULC-S104 fire door conformant
• ULC-S527 listed
• UL 864 listed

Holding Force: 1200 lbs, per magnet

Dimensions:

• Magnet size: 21" L x 2-7/8" H x 1-1/2" W
• Armature size: 7-1/2" L x 2-3/8" H x 5/8" W

Electrical:

• 12 or 24 VDC, field selectable
• Current draw, per magnet: 505 mA at 12VDC, 260 mA at 24 VDC
• Bond sensor has SPDT 3A relay contacts, per magnet

Operating Temperature: +14F to +131F [-10C to +55C]

Installing your new magnetic lock has never been easier. With the E-Z mount header bracket and template provided, you'll breeze through the installation process with no special tools required.

Key Features of the Installation Kit

• E-Z Mount Header Bracket: This bracket is designed for simplicity, ensuring a secure fit without the hassle.
• Installation Template: The template guides you in precise alignment, reducing the chances of mistakes.
• No Special Tools Needed: Everything you need is included, making it a perfect DIY project.

These aids streamline the installation, ensuring that even beginners can confidently set up the magnetic lock quickly and efficiently. Whether you're upgrading your home security or outfitting a business, this user-friendly kit takes the stress out of the process.

Specifications for Mounting Brackets Compatible with the Magnetic Lock

When selecting mounting brackets for a double magnetic lock, it's crucial to consider the following specifications to ensure compatibility and optimal performance:

General Overview

• Model Compatibility: Designed specifically for the 1200D double magnetic lock model.
• Quantity: Typically packaged as a single unit for ease of installation.

Dimensions

• Lock Body: Measures approximately 21 inches in depth, ensuring robust coverage over double doors.
• Lock Height and Width: The overall body is about 4.5 inches tall and 10.5 inches wide, offering a substantial surface area for secure attachment.
• Armature Plate: Dimensions include a depth of 7.50 inches, a height of 2.38 inches, and a width of 0.63 inches, crafted to align perfectly with the magnetic lock.

Material and Finish

• Construction Material: Primarily composed of durable plastic, balancing lightweight properties with strength.
• Finish: Features a clear anodized coat for aesthetic appeal and corrosion resistance, enhancing longevity.

Electrical Characteristics

• Input Requirements: Compatible brackets support magnetic locks operating at 12V DC or 24V DC, with input currents of 260 mA and 505 mA respectively.

Performance and Reliability

• Holding Force: Engineered to secure loads up to 1200 lbs, providing excellent retention for enhanced security.
• Installation: Typically uses a bracket mount system, which simplifies alignment and installation while ensuring stability.

By prioritizing these specifications, users will ensure that their mounting brackets are not only compatible but also maximize the performance and durability of their magnetic locking system.
