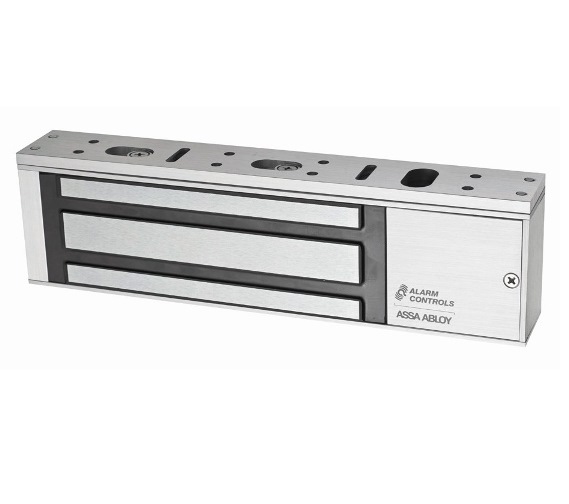

Alarm Controls 1200S US28 Magnetic Lock 1200 lbs 12/24 VDC
Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications.
Standard Features:
1200S Standard model
Built-in arc suppression
Instant release, no hysteresis
Self-drilling TEC screws
Non-aluminum parts are plated to resist corrosion
E-Z mount header bracket and template provided for easy installation, no special tools required
Can be used with any access control system
Clear anodized (US28) finish standard
Limited lifetime warranty
Options:
DURO Duranodic finish (US 40) available, specify when ordering
Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.
Certifications & Listings:
UL 294 listed
UL 10C fire rated
CAN/ULC-S104 fire door conformant
UL 864 listed
CAN/ULC-S527 listed
Holding Force: 1200 lbs
Dimensions:
Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
Armature size: 7-1/4" L x 2-3/8" H x 5/8" W
Electrical:
12 or 24 VDC, field selectable
Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
1200LB bond sensor has SPDT 3A relay contacts
Operating Temperature: +14F to +131F [-10C to +55C]
| Brand | Alarm Controls |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
| Voltage | 12 VDC, 24 VDC |
