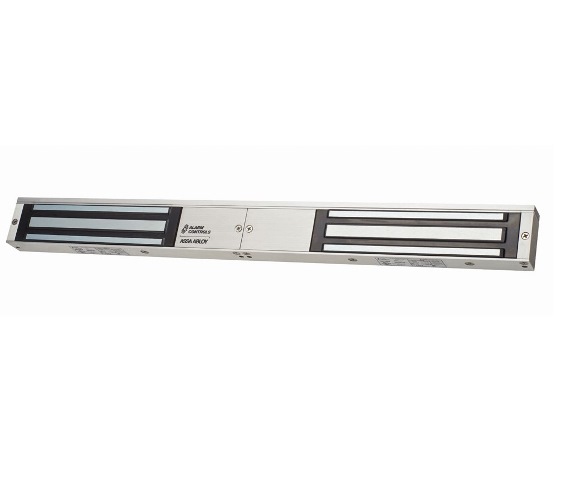

Alarm Controls 600D US28 Double Door Magnetic Lock 600 lbs 12/24 VDC
Double magnetic lock with 600 lbs of force, per door, allows control of both doors within a double door configuration. Bracket mounted and easy to install double magnetic locks can be used with any access control system.
Standard Features:
600D Standard double magnetic lock
Built-in arc suppression
Instant release, no hysteresis
Self-drilling TEC screws
Non-aluminum parts are plated to resist corrosion
E-Z mount header bracket and template provided for easy installation, no special tools required
Can be used with any access control system
Clear anodized (US28) finish standard
Limited lifetime warranty
Options:
DURO Duranodic finish (US 40) available, specify when ordering
Dress covers in polished chrome and brass available. See "Magnetic Lock Accessories" for options.
Certifications & Listings:
UL 294 listed
UL 10C fire rated
CAN/ULC-S104 fire door conformant
ULC-S527 listed
UL-864 listed
Holding Force: 600 lbs, per magnet
Dimensions:
Magnet size: 19-3/4" L x 1-7/8" H x 1" W
Armature size: 7-1/4"L x 1-1/2" H x 5/8" W
Electrical:
12 or 24 VDC, field selectable
Current draw, per magnet: 505 mA at 12 VDC, 260 mA at 24 VDC
600DLB bond sensor has SPDT 3A relay contacts, per magnet
Operating Temperature: +14F to +131F [-10C to +55C]
| Brand | Alarm Controls |
| Mag Lock Type | Double Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
| Voltage | 12 VDC, 24 VDC |
