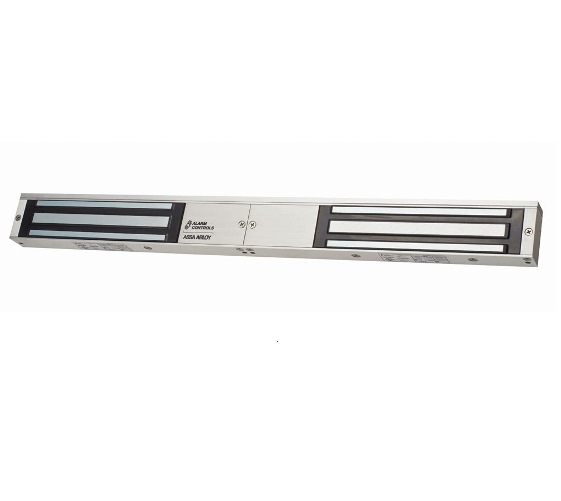

Alarm Controls 600DLB US28 Double Door Magnetic Lock
Alarm Controls 600DLB Double Door Magnetic Lock with LED, Bond Sensor, & Door Status 12/24VDC
Alarm Controls 600DLB US28 Double Door Magnetic Lock with Bond Sensor, Door Status Sensor and LED
Double magnetic lock with 600 lbs of force, per door, allows control of both doors within a double door configuration. Bracket mounted and easy to install double magnetic locks can be used with any access control system.
Standard Features:
600DLB Magnetic lock with indicating LED, bond sensor and door status sensor
Built-in arc suppression
Instant release, no hysteresis
Self-drilling TEC screws
Non-aluminum parts are plated to resist corrosion
E-Z mount header bracket and template provided for easy installation, no special tools required
Can be used with any access control system
Clear anodized (US28) finish standard
Limited lifetime warranty
Options:
DURO Duranodic finish (US 40) available, specify when ordering
Dress covers in polished chrome and brass available. See "Magnetic Lock Accessories" for options.
Certifications & Listings:
UL 294 listed
UL 10C fire rated
CAN/ULC-S104 fire door conformant
ULC-S527 listed
UL-864 listed
Holding Force: 600 lbs, per magnet
Dimensions:
Magnet size: 19-3/4" L x 1-7/8" H x 1" W
Armature size: 7-1/4"L x 1-1/2" H x 5/8" W
Electrical:
12 or 24 VDC, field selectable
Current draw, per magnet: 505 mA at 12 VDC, 260 mA at 24 VDC
600DLB bond sensor has SPDT 3A relay contacts, per magnet
Operating Temperature: +14F to +131F [-10C to +55C]
| Brand | Alarm Controls |
| Mag Lock Type | Double Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
| Voltage | 12 VDC, 24 VDC |
| Magnetic Lock Options | Bond Sensor, LED, Door Status Sensor |
