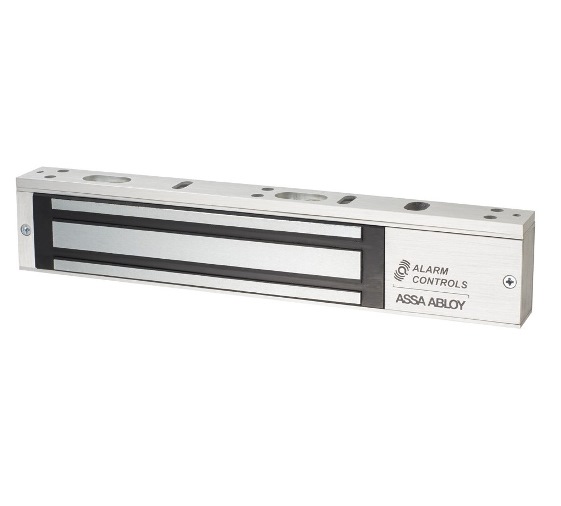

Alarm Controls 600S US28 Single Door Magnetic Lock 600 lbs 12/24 VDC
Alarm Controls 600S Single Door Magnetic Lock 600 lbs 12/24 VDC
Alarm Controls 600S US28 Single Door Magnetic Lock, 600 lbs 12/24 VDC
Bracket mounted, single magnetic lock with 600 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications.
Standard Features:
600S Standard model
Built-in arc suppression
Instant release, no hysteresis
Self-drilling TEC screws
Non-aluminum parts are plated to resist corrosion
E-Z mount header bracket and template provided for easy installation, no special tools required
Can be used with any access control system
Clear anodized (US28) finish standard
Limited lifetime warranty
Options:
DURO Duranodic finish (US 40) available, specify when ordering
Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.
Certifications & Listings:
UL 294 listed
UL 10C fire rated
CAN/ULC-S104 fire door conformant
UL 864 listed
CAN/ULC-S527 listed
Holding Force: 600 lbs
Dimensions:
Magnet size: 9-7/8" L x 1-11/16" H x 1" W
Armature size: 7-1/4" L x 1-1/2" H x 1/2" W
Electrical:
12 or 24 VDC, field selectable
Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
600LB bond sensor has SPDT 3A relay contacts
Operating Temperature: +14F to +131F [-10C to +55C]
| Brand | Alarm Controls |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
| Voltage | 12 VDC, 24 VDC |
