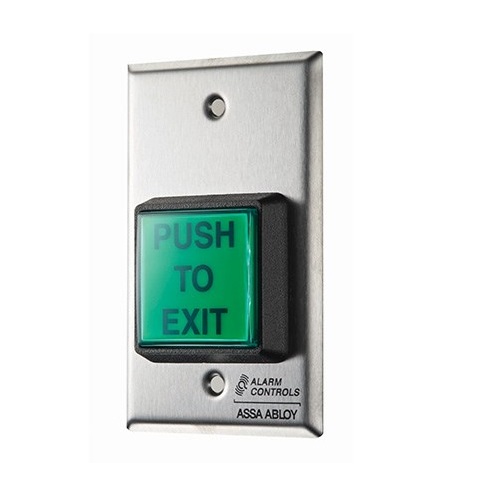

Alarm Controls TS-2T Request to Exit Button with Timer
The TS-2T request to exit station with electronic timer and square push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.
Standard Features:
Switch mounted on single gang wall plate with 430 stainless steel finish
2" green square push button; illuminated with hi-brightness LED
Button labeled: “PUSH TO EXIT” for easy to follow egress instructions
Momentary SPDT timed output
Timer delay is adjustable 2 to 45 seconds
Options:
TS-2TD with DPDT dual timed output
TS-2-2T with two SPDT outputs (one set of momentary, one set of timed contacts)
TS-2TRED with red push button
TS-2TENTER button labeled "PUSH TO ENTER"
TS-2TBLANK button left blank
856LEDSM Replacement LED (5 pack)
Custom legends available as custom part
Certifications & Listings: UL 294 listed
Electrical:
SPDT timed contacts, rated 2A at 35 VDC
Switch depth behind plate: 2-1/2"
Switch terminated with 10” colored leads
LED operates on 12 or 24 VAC/VDC
| Brand | Alarm Controls |
| Switch Contacts | SPDT |
| Voltage | 12 VDC, 24 VDC |
| Exit Button Options | Time Delay |
