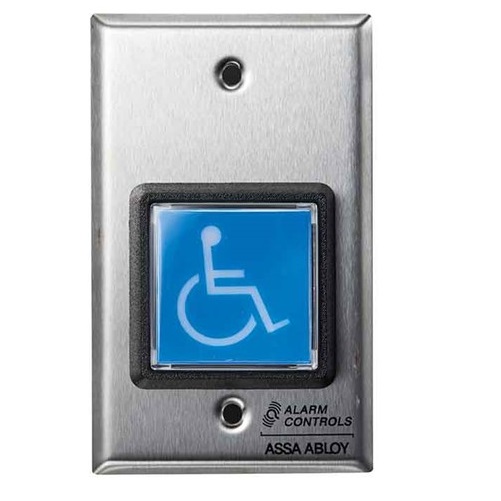

Alarm Controls TS-4T Request to Exit Button with Timer
The TS-4T request to exit station with electronic timer and square push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired. Blue push button is labeled with ADA symbol to indicate accessibility compliance.
Standard Features:
Switch mounted on single gang wall plate with 430 stainless steel finish
2” blue square pushbutton; illuminated with hi-brightness LED
Button labeled with ADA symbol
Momentary SPDT timed output
Time delay is adjustable 2 to 44 seconds
Options:
TS-4TD with DPDT with dual timed output
TS-4-2T with two SPDT outputs (one set of momentary, one set of timed contacts)
Custom plate finishes available as custom part
Certifications & Listings: UL 294 listed
Electrical:
SPDT timed contacts, rated 2A at 35 VDC
Switch depth behind plate: 2-1/2”
Switch terminated with 10” colored leads
LED operates on 12 or 24 VAC/VDC
| Brand | Alarm Controls |
| Switch Contacts | SPDT |
| Voltage | 12 VDC, 24 VDC |
| Exit Button Options | Time Delay |
