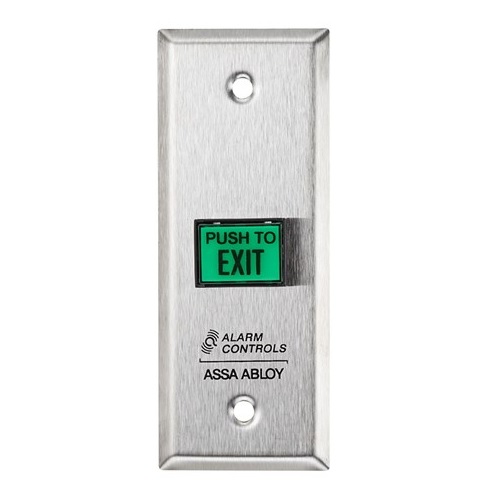

Alarm Controls TS-9 Request to Exit Button
The narrow stile TS-9 request to exit stations with rectangular push button provides a convenient way to add authorized access control for a variety of applications.
Standard Features:
TS-9 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
5/8" x 7/8" green rectangular push button; illuminated with hi-brightness LED
Button labeled “PUSH TO EXIT” for easy to follow egress instructions
Momentary DPDT action switch
Options:
TS-9L with latching action switch
TS-9T with timed output (Timer is adjustable 2 to 45 seconds)
Finishes: multiple plate options available
Custom legends available as custom part
Certifications & Listings: UL 294 listed
Electrical:
DPDT timed contacts, rated 3A at 35 VDC or 120 VAC
Timed output is SPDT contacts, rated 2A at 35 VDC
Switch depth behind plate: 1-1/4"
Switch terminated with 10” colored leads
LED operates on 12 or 24 VAC/VDC
Operating Temperature: -13F to +158 F (-25C to 70 C)
| Brand | Alarm Controls |
| Switch Contacts | DPDT |
| Voltage | 12 VDC, 24 VDC |
