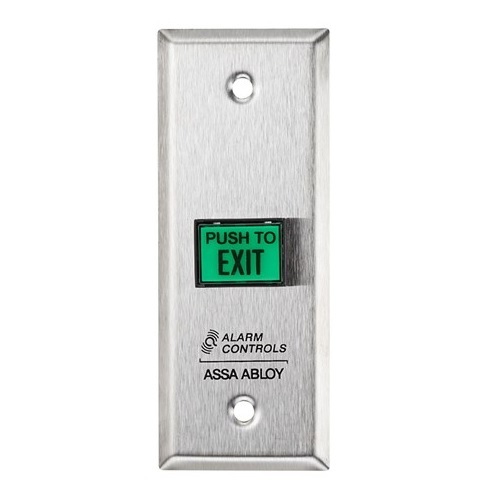

Alarm Controls TS-9T Request to Exit Button with Timer
The narrow stile TS-9T request to exit stations with electronic timer and rectangular push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.
Standard Features:
TS-9 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
TS-9T with timed output (Timer is adjustable 2 to 45 seconds)
5/8" x 7/8" green rectangular push button; illuminated with hi-brightness LED
Button labeled “PUSH TO EXIT” for easy to follow egress instructions
Momentary DPDT action switch
Options:
TS-9L with latching action switch
Finishes: multiple plate options available
Custom legends available as custom part
Certifications & Listings: UL 294 listed
Electrical:
DPDT timed contacts, rated 3A at 35 VDC or 120 VAC
Timed output is SPDT contacts, rated 2A at 35 VDC
Switch depth behind plate: 1-1/4"
Switch terminated with 10” colored leads
LED operates on 12 or 24 VAC/VDC
Operating Temperature: -13F to +158 F (-25 to 70 C)
| Brand | Alarm Controls |
| Exit Button Options | Time Delay |
| Switch Contacts | DPDT |
| Voltage | 12 VDC, 24 VDC |
