McKinney QC-R003 ElectroLynx Molex Hand Crimp Tool

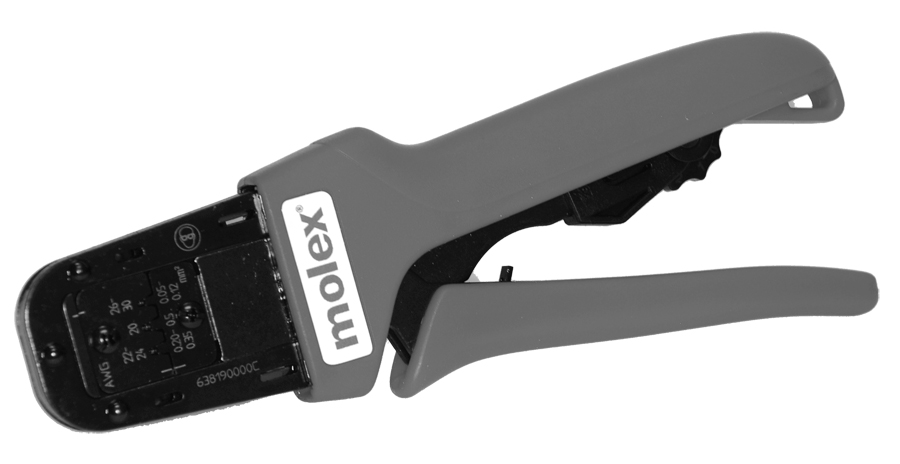

The McKinney QC-R003 ElectroLynx Hand Crimp Tool is a specialized precision instrument required for the professional termination and repair of electrified door hardware. Specifically engineered for the ElectroLynx "plug-and-play" system, this manual crimp tool allows technicians to securely attach Molex terminals (connector pins) to architectural wiring. It is the essential solution for door restoration and field maintenance, ensuring that custom-length harnesses and field repairs maintain the high-conductivity standards required for electronic access control.

Designed for low-volume installations and critical on-site repair requirements, the QC-R003 provides a repeatable, vibration-resistant crimp that generic electrical tools cannot replicate. By utilizing this factory-standard tool, you ensure that every 2, 4, 8, or 12-circuit connection is a professional-grade solution for door surface repair, preventing the intermittent signal loss or power failures often associated with improper wire termination.

Key Features & Benefits

• Factory-Standard Terminations: Specifically designed for ElectroLynx male and female terminals, ensuring a perfect mechanical and electrical bond every time.
• Essential Repair Component: The primary tool required for pinning wires in the QC-R001 Service Repair Kit, serving as a vital solution for commercial door security.
• Ergonomic Manual Operation: Optimized for field use, providing the necessary leverage to create a secure crimp on 20-24 AWG and 26-28 AWG wires without specialized machinery.
• Error-Proof Connectivity: Enables the creation of custom-pinned retrofit harnesses, acting as a permanent solution for door edge reinforcement in complex electrified openings.
• Compact & Portable: Built for the service technician’s toolkit, allowing for immediate on-site troubleshooting and hardware electrification in schools, hospitals, and high-security offices.

Technical Details & Specifications

• Brand: McKinney (ASSA ABLOY)
• Model Number: QC-R003
• Tool Type: Manual Hand Crimper
• Application: Low-volume pinning and repair of Molex-style ElectroLynx terminals.

• Compatibility: Works with 20-28 AWG wiring used in electrified hinges, locks, and power transfers.
• Installation Tip: After crimping your terminals and inserting them into the plug, ensure the wire harness is routed safely through the door raceway.

Why Choose the McKinney QC-R003?

The McKinney QC-R003 is the professional’s choice for maintaining the integrity of an ElectroLynx system. While standard pliers or generic crimpers can damage the delicate Molex pins, this specialized tool ensures the terminal retains its exact shape for a secure "click" into the connector housing. It offers a permanent and cost-effective solution for door security, providing the reliability needed for life-safety systems and high-frequency electrified doors.
