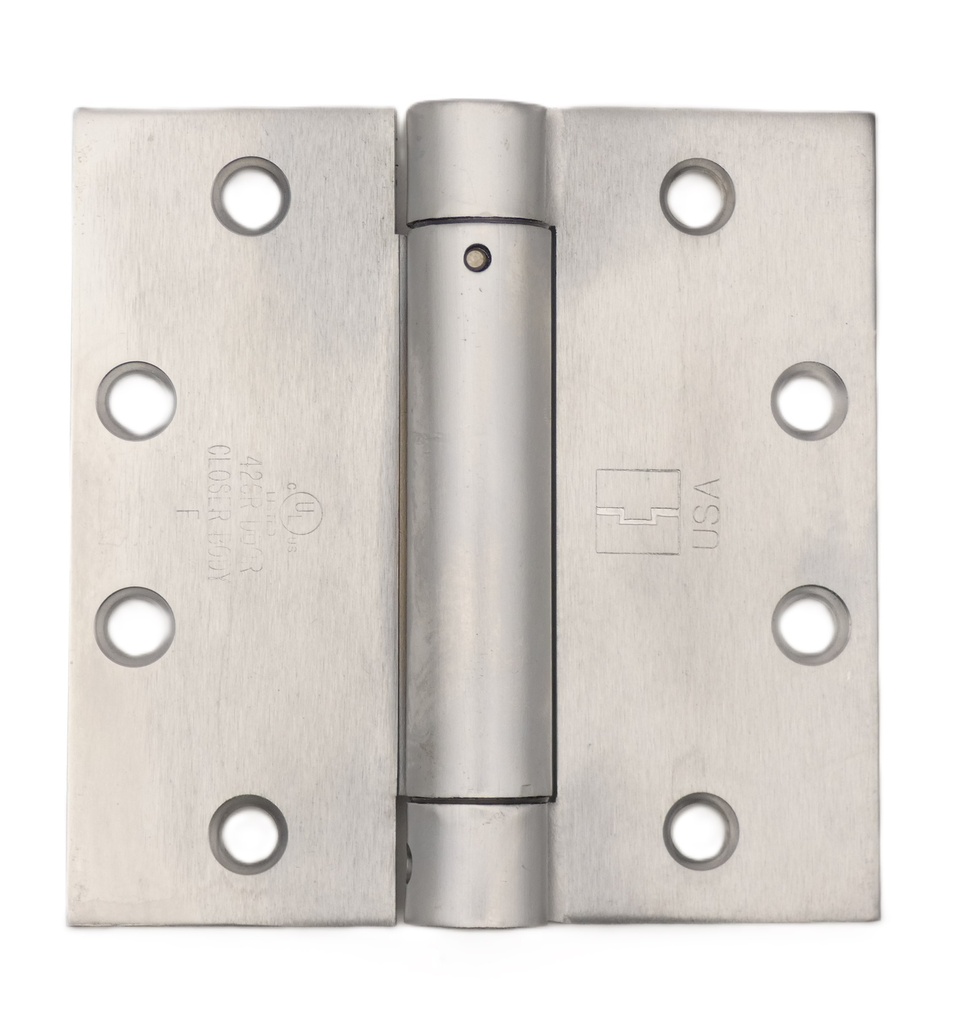

Hager 1250 4-1/2" x 4-1/2" Single Acting Spring Hinge
The Hager 1250 is a high-performance self-closing door hinge designed to automatically close doors in hotels, motels, institutions, and commercial buildings. Engineered for reliability and safety, this single acting spring hinge is a cost-effective alternative to overhead door closers, ensuring that fire-rated doors return to the closed and latched position as required by law.
Fire Safety and Code Compliance
Compliance is critical in commercial hardware. The Hager 1250 Series meets ANSI K81071F standards and is approved for use on labeled fire doors. According to NFPA 80 regulations, self-closing hinges are mandatory for maintaining the integrity of fire barriers. These hinges are UL listed and approved for 4' x 8' labeled doors when a minimum of three hinges are utilized, providing the necessary tension to secure large openings during an emergency.
Versatile Installation and Strength
Constructed from durable steel with steel components, these hinges are designed for 1-3/4" thick doors. The adjustable spring tension allows for precise control over the closing speed, making it an ideal choice for high-traffic commercial hardware applications. Whether you are outfitting a new facility or retrofitting existing frames, the Hager 1250 ensures your entryways meet modern safety codes.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 1250 |
| Dimensions | 4-1/2" x 4-1/2" (114mm x 114mm) |
| Hinge Type | Single Acting Spring Hinge |
| Material | Steel with Steel Components |
| Gauge (Thickness) | 0.134" |
| Door Thickness | Optimized for 1-3/4" (44mm) Doors |
| Standards | ANSI K81071F; NFPA 80 Compliant |
| Action | Self-Closing / Single Acting |
| Fire Rating | Approved for Labeled Fire Doors (Up to 4' x 8') |
Usage Recommendations by Door Weight
To ensure proper closing force and hinge longevity, Hager recommends the following configurations:
- Up to 70 lbs: 1 Spring Hinge (Use BB1279 ball bearing hinges for the remaining two).
- 70 to 115 lbs: 2 Spring Hinges (Use BB1279 ball bearing hinge for the remaining one).
- 115 to 150 lbs: 3 Spring Hinges.
Installation Hardware
Each hinge is furnished with a complete set of high-quality fasteners for wood or metal applications:
- All Machine Screws: 1/2" 12-24 FPHM
- All Wood Screws: 1-1/4" x 12 FPHW
Available Finishes and Options
We stock the Hager 1250 in USP (Prime for Paint), US10 (Satin Bronze), and US26D (Satin Chrome). Additional finishes and specialized models are available by quote:
- Architectural Finishes: Bright Brass (US3), Satin Brass (US4), Antique Bronze (US10A), and Oil Rubbed Bronze (US10B).
- Specialized Models: 1/4" or 5/8" Radius Corners (Model 1251/1252), Reverse Action (Model 1257), Swing Clear (Model 1267), and Stainless Steel Spring Hinges (Model 1150).
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or L1 - Black or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise, Spring Hinge |
| Spring Hinge Type | Single Acting |
| Base Material | Steel |
| Hinge Corners | Square |
