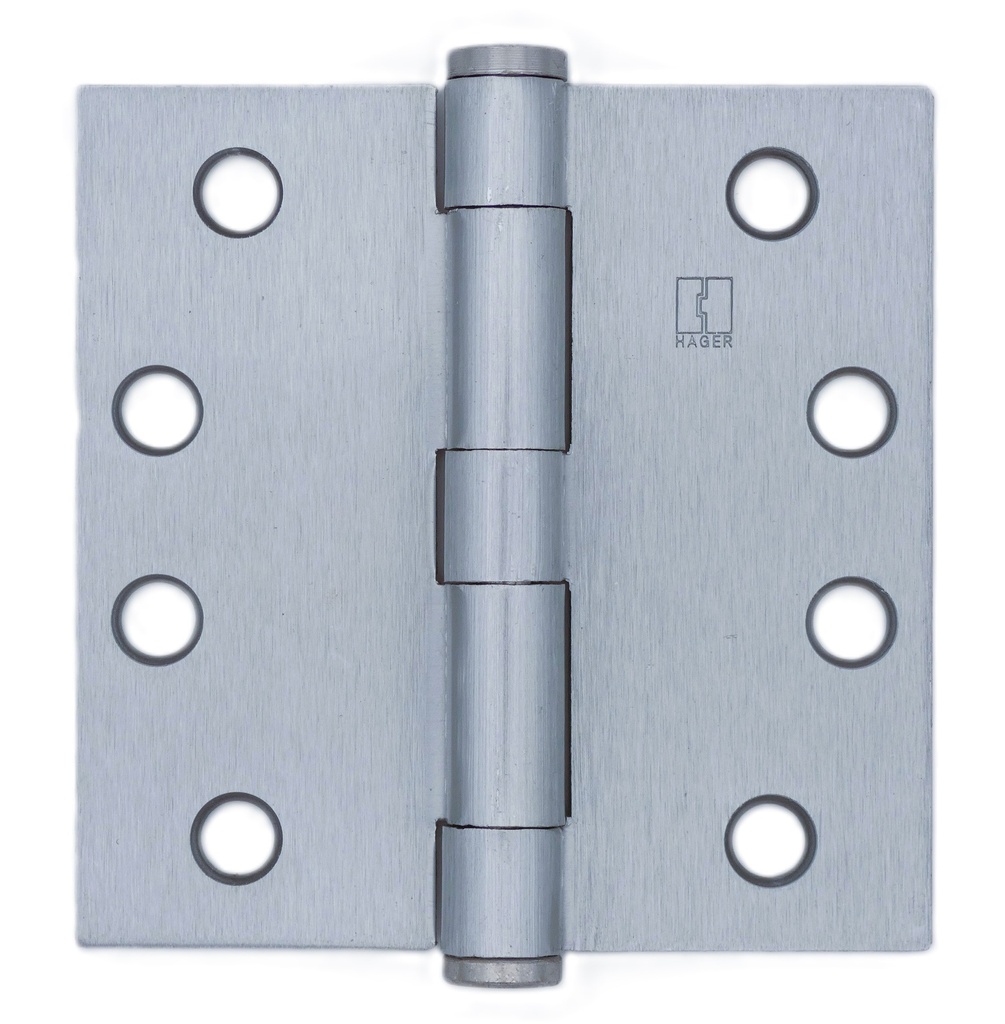

Hager 1279 4.0 x 4.0 Full Mortise - Plain Bearing Hinge, Steel with plated finish.
Furnished standard with All wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
Hinges are .129 thickness, For 1 3/4" door thickness. For use on medium weight doors or doors requiring low frequency service.
Material:
- Steel with Steel pin
- Square Corners
- Non-rising removable pin with button tip and plug
- Doors with closers and UL Fire Rated Doors should use ball bearing hinges
ANSI A8133
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel or US26 - Polished Chrome or US3 - Polished Brass or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
