Hager 1541 4" x 4" Non-Ferrous Plain Bearing Hinge
The Hager 1541 is a premium residential plain bearing hinge designed specifically for environments where moisture and salt air are a concern. Crafted from non-ferrous materials, this hinge will not rust or corrode, making it the ideal choice for coastal homes, bathrooms, and laundry rooms. With a clean square corner design and a 4-inch profile, it provides a classic look and reliable performance for standard residential doors.
Superior Material for Maximum Longevity

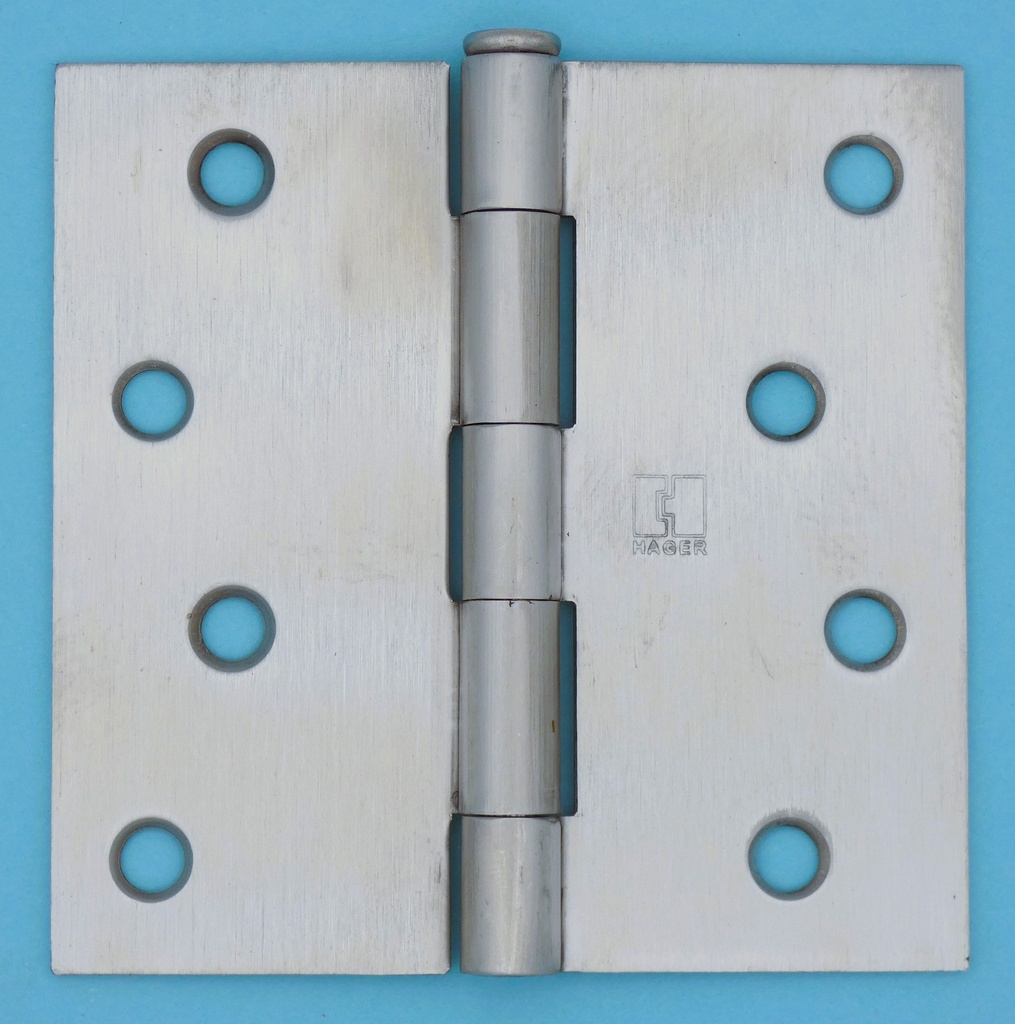

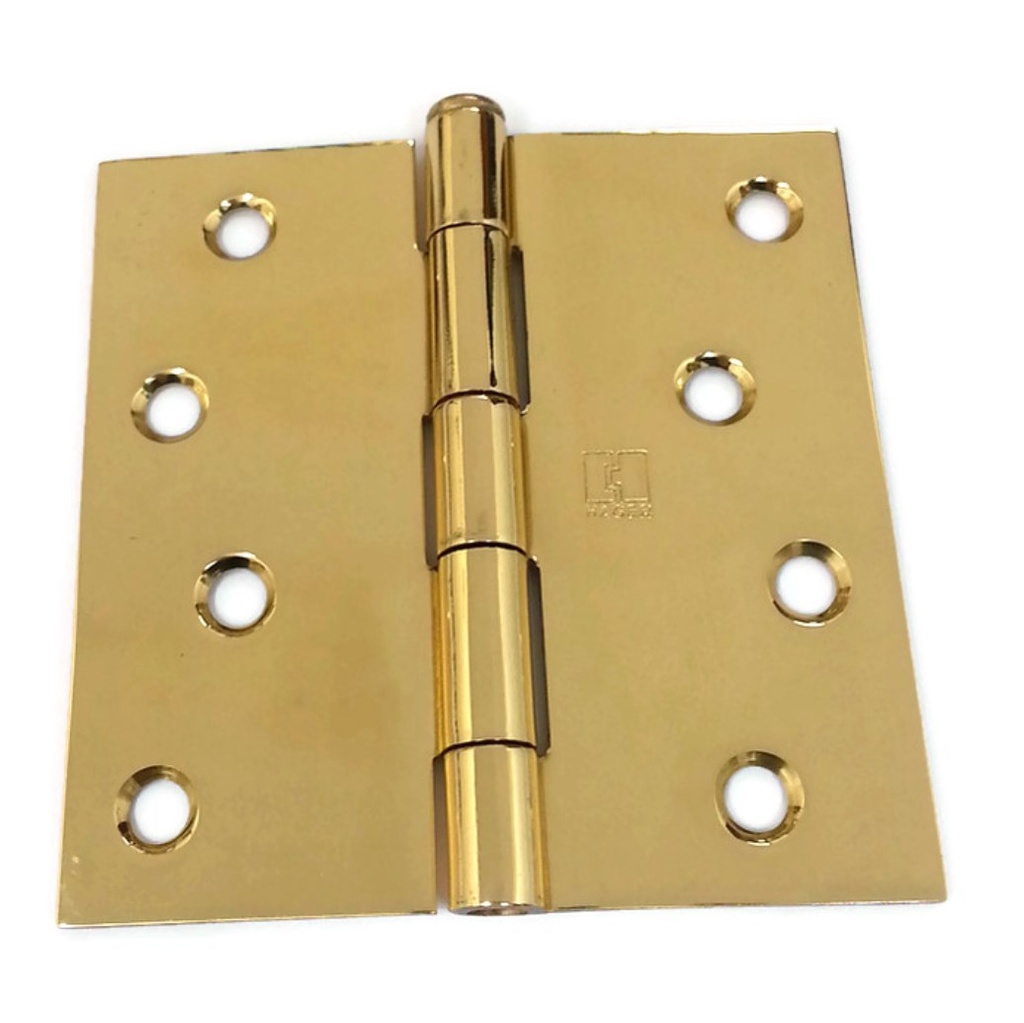

Unlike standard steel hinges that can rust over time, the Hager 1541 is available in either solid brass or stainless steel. This non-ferrous construction ensures that your door hardware maintains its structural integrity and aesthetic finish even in high-humidity areas. Whether you select the timeless appeal of US3 Bright Brass or the industrial durability of US32D Satin Stainless Steel, these hinges are built to endure.
Specialized Residential Design
These hinges feature a .085 metal gauge thickness, perfectly suited for standard interior and exterior residential doors. To ensure the smoothest operation, Hager recommends lubricating the hinges during or after installation with lithium grease, as these residential units are provided unlubricated from the factory. This allows for a customized, quiet swing tailored to your specific door weight.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 1541 |
| Dimensions | 4.0" x 4.0" (102mm x 102mm) |
| Hinge Type | Plain Bearing - Square Corner |
| Material | Brass (with Brass Pin) or Stainless Steel |
| Gauge (Thickness) | 0.085" |

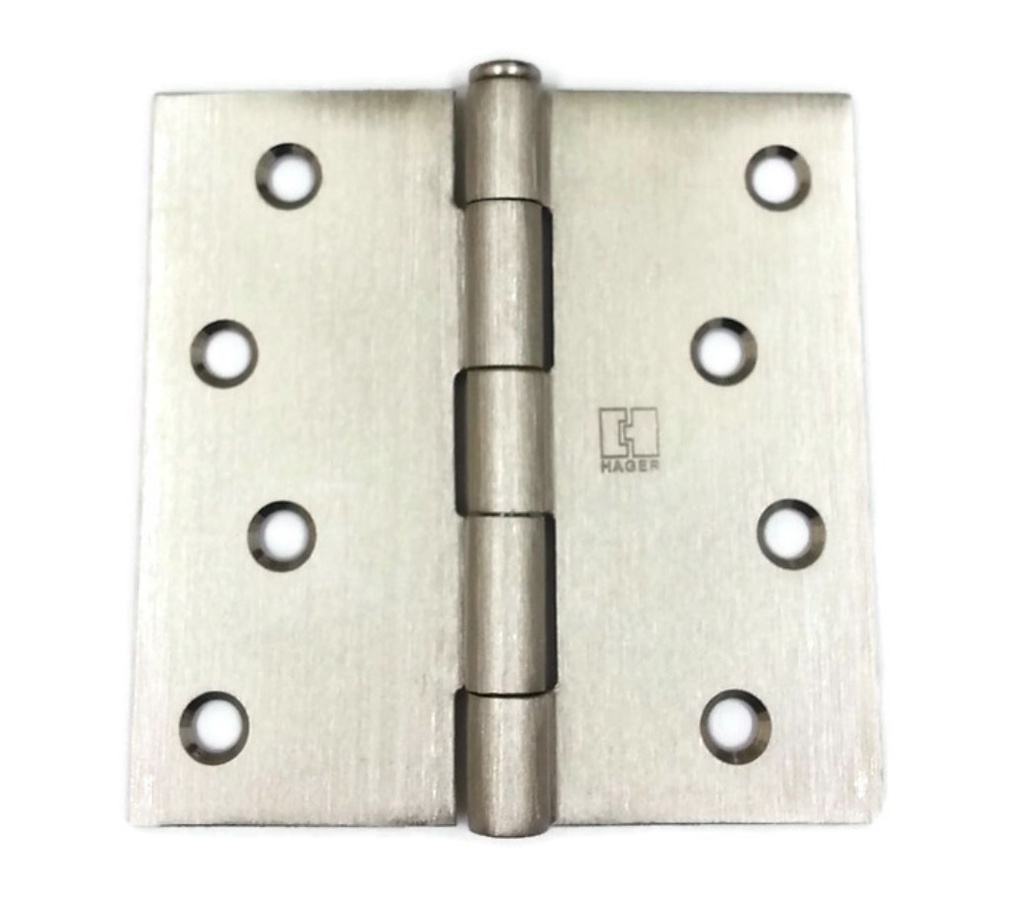

| Available Finishes | US3, US10B (Oil Rubbed Bronze), US15, US32D |
| Packaging | 2 Hinges per box (Pricing is Per Hinge) |
| Fasteners | 3/4 x 9 FH Wood Screws (Included) |
Installation and Custom Options
- Machine Screws: Available for metal door/frame applications at an additional price.
- Special Quotes: US32 Polished Stainless Steel and specialized 3.5" x 3.5" sizes are available by request.
- Maintenance: Hager recommends applying lithium grease to the pin and knuckles during installation for optimal longevity.

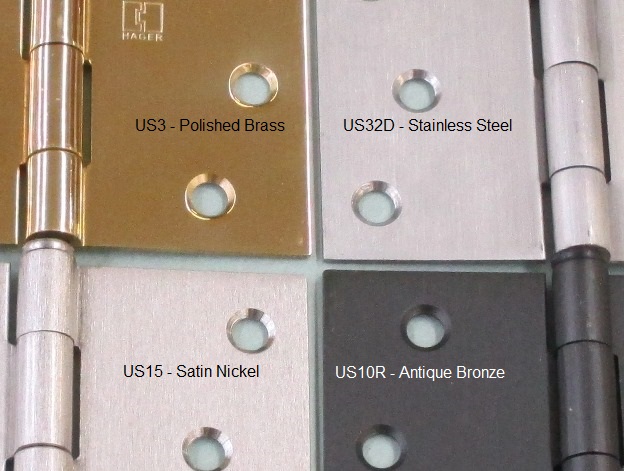

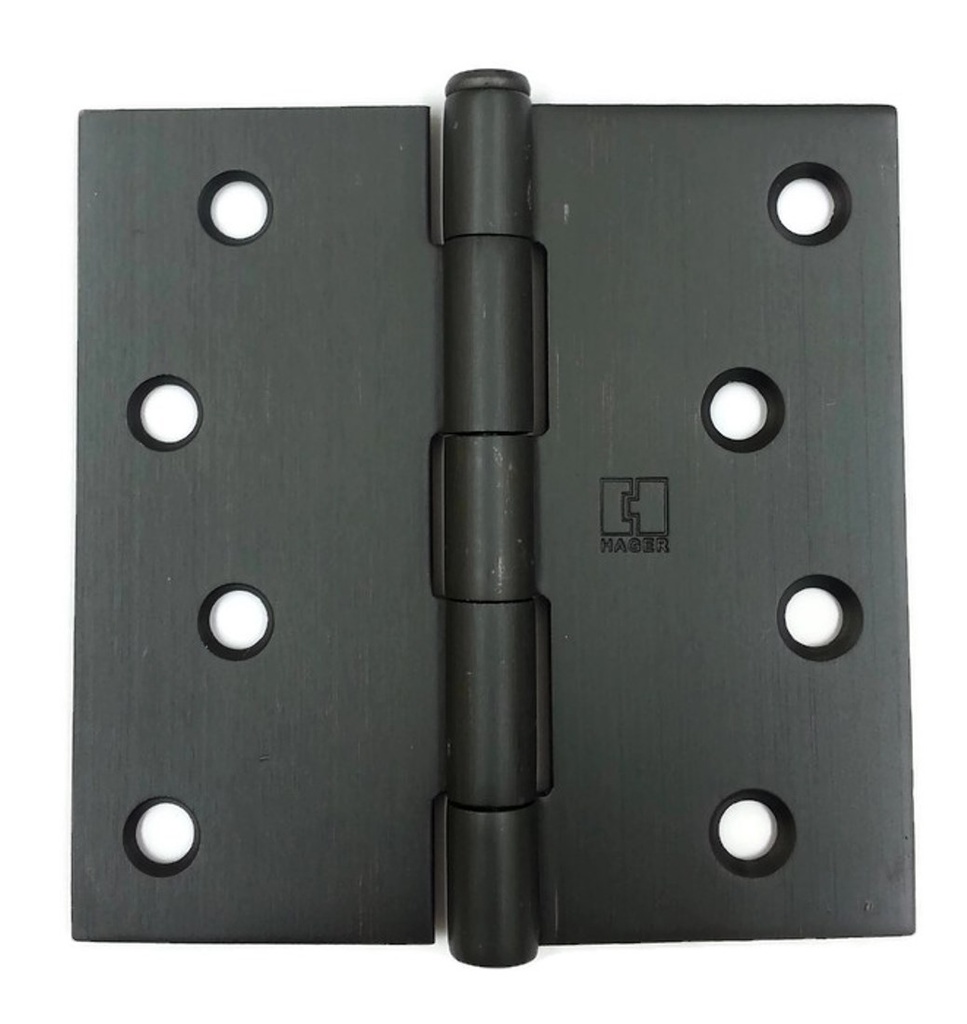

| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US15 - Satin Nickel or US3 - Polished Brass or US10R - Antique Bronze |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Type | Full Mortise |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Options | Plain Bearing |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Square |
