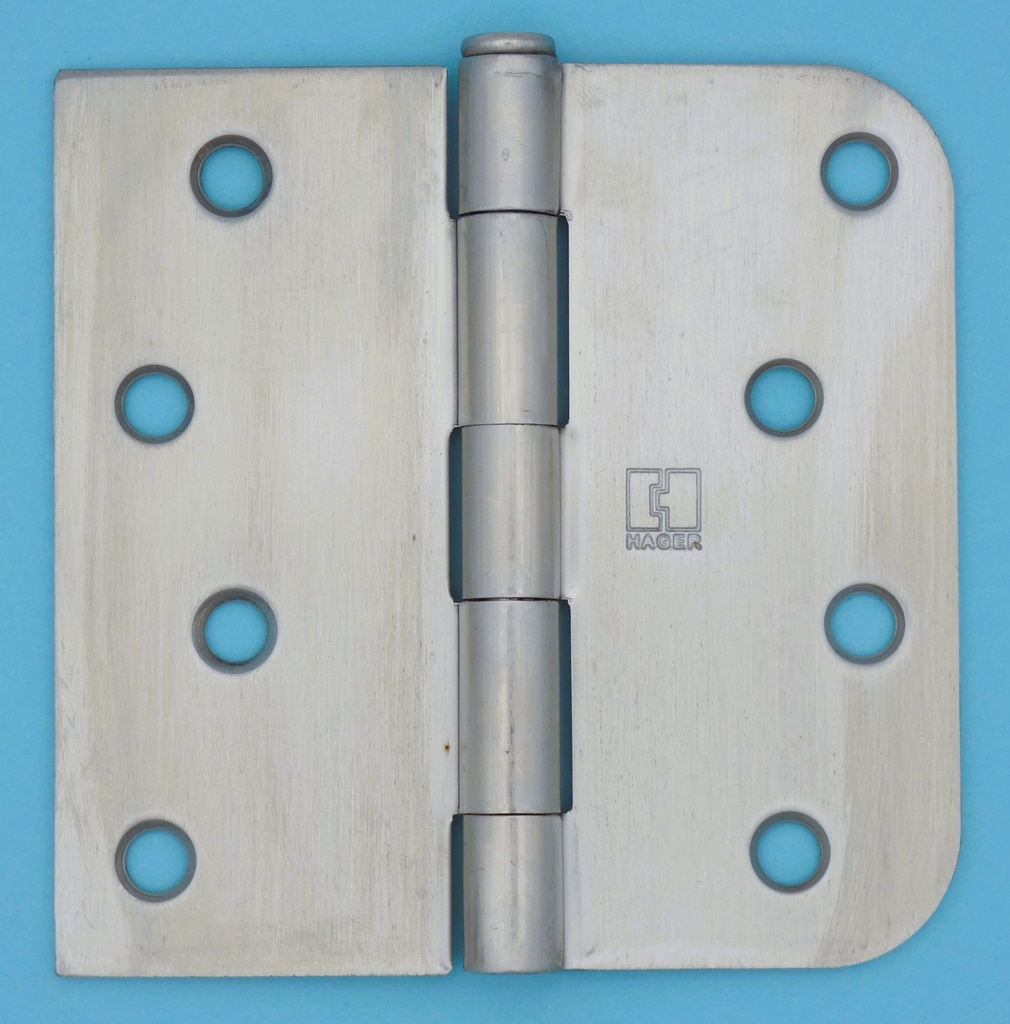

Hager 1543 4" x 4" Non-Ferrous Hinge | Square x 5/8" Radius Corner
The Hager 1543 is a specialized residential plain bearing hinge designed for unique "mixed-prep" installations. This hinge features one square corner leaf and one 5/8" radius rounded leaf, making it the perfect solution for matching new, factory-prepped doors (often 5/8" radius) with existing square-mortised door frames. Crafted from non-ferrous materials, it is inherently rust-proof and ideal for coastal environments, bathrooms, and laundry rooms.
Dual-Corner Versatility and Construction
The Hager 1543 eliminates the need for field-mortising by providing a hybrid corner configuration that fits standard residential preps seamlessly. Available in solid brass or stainless steel, this hinge is strictly non-ferrous, ensuring it will not pit or corrode when exposed to moisture or salt air. The removable pin design allows for easy door hanging and maintenance, while the right-hand assembly ensures a precision fit for standard door swings.
Durable Residential Performance
With a .085 metal gauge, this hinge provides the necessary strength for standard interior and exterior residential doors. To ensure a lifetime of silent operation, Hager recommends lubricating the hinges with lithium grease during installation, as residential units are shipped unlubricated. This allows you to achieve a smooth, customized swing that protects the beauty of your door and frame.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 1543 |
| Dimensions | 4.0" x 4.0" (102mm x 102mm) |
| Corner Type | Mixed: 1 Leaf Square / 1 Leaf 5/8" Radius |
| Hinge Type | Plain Bearing - Removable Pin |
| Material | Brass (Brass Pin) or Stainless Steel (SS Pin) |
| Gauge (Thickness) | 0.085" |
| Standards | ANSI A2134 (Brass) / ANSI A5134 (Stainless) |
| Handing | Assembled Right Hand |
| Available Finishes | US3, US10B (Oil Rubbed Bronze), US15, US32D |
Installation and Hardware
- Fasteners: Every hinge is furnished standard with matching 3/4 x 9 FH wood screws.
- Custom Requirements: Machine screws are available for an additional charge for metal jamb applications.
- Special Orders: The mirror-like US32 Polished Stainless Steel finish and 3.5" x 3.5" sizes are available by special quote.
- Purchasing Note: While packaged in boxes of two, pricing and purchasing is per hinge.
How to tell the difference between Residential Hinge and Commercial Hinge
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US15 - Satin Nickel or US3 - Polished Brass or US10R - Antique Bronze |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Half Square-Half 5/8 Radius |
