Hager 1543 4 x 4 Hinge w/ Square Corner x 5/8in Radius Corner

Price:

$ 13.94
  2. Shop
  3. Hager 1543 4 x 4 Hinge w/ Square Corner x 5/8in Radius Corner
Hager RC1542 Plain Bearing Hinge 4 x 4 w/ 5/8in Radius
Hager RC1542 Plain Bearing Hinge 4 x 4 w/ 5/8in Radius
$ 13.71
$ 13.71
Hager Residential Hinge Pin Set with Ball Tips, 1710
Hager Residential Hinge Pin Set with Ball Tips, 1710
$ 15.75
$ 15.75

Hager 1543 4 x 4 Hinge w/ Square Corner x 5/8in Radius Corner

https://www.doorwaysplus.com/web/image/product.template/1852/image_1920?unique=780773f

Hager 1543 4.0 x 4.0 Square Corner Hinge x 5/8in Radius Corner Residential Hinge

$ 13.94 13.94 USD $ 13.94

$ 13.71

Not Available For Sale

  • General - US Finishes
  • Brand
  • Hinge Height
  • Hinge Width
  • Hinge Grade/Thickness
  • Hinge Type
  • Hinge Options
  • Base Material
  • Base Material
  • Hinge Corners

This combination does not exist.

Contact Us
Share :

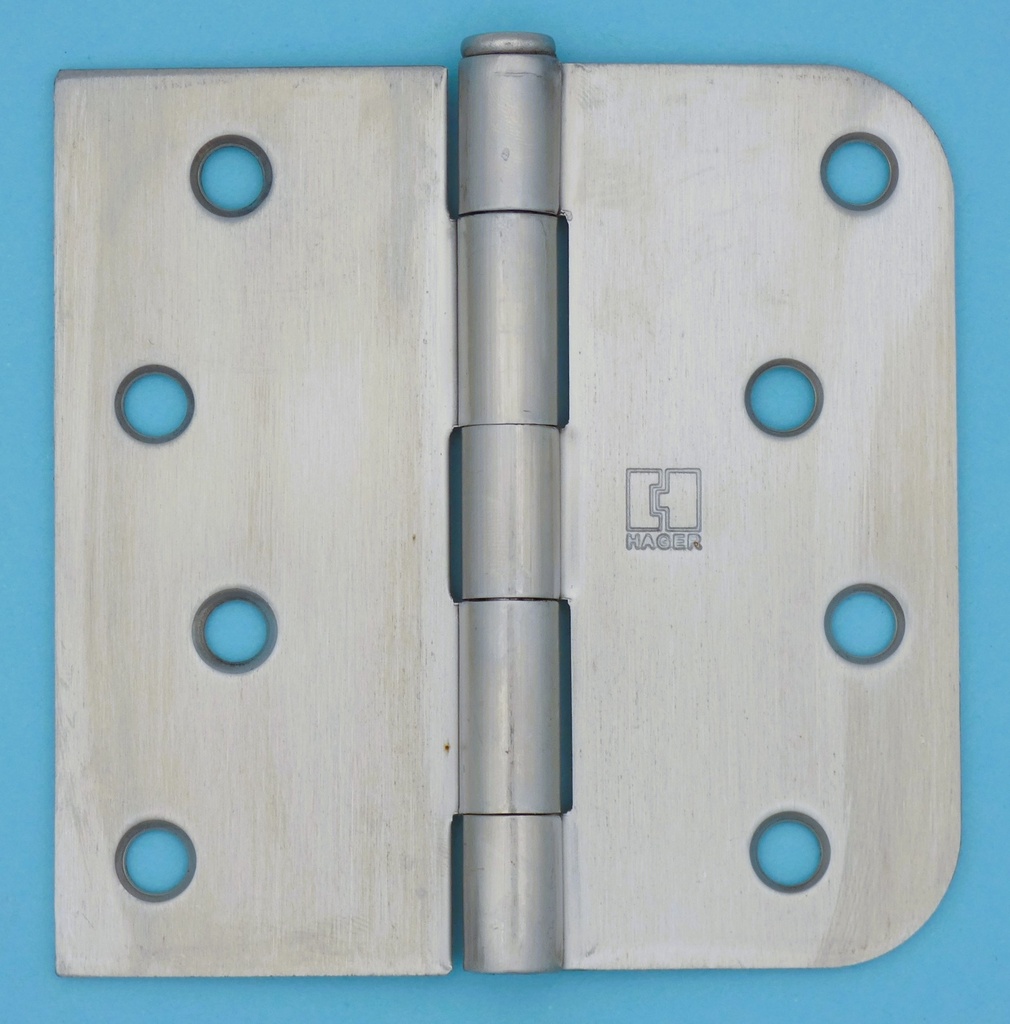

Hager 1543 Plain Bearing, Non Ferrous Hinge

Size:          - 4.0" x 4.0"

Corners:       - One Leaf Square Corner, One Leaf Rounded Corners with 5/8" Radius.

Thickness:    - .085 Metal Gauge

Material:

  • Brass with Brass pin or
    Stainless Steel with Stainless Steel pin (US32D)


Finishes:     - US3, US10R (US10B), US15, US32D

Packaging:  - 2 hinges per box with wood screws (3/4 x 9 FH) - Machine screws available for additional price

Please Note - Pricing and purchasing is Per Hinge.

Hager residential hinges are provided without lubrication. Hager recommends lubricating the hinges during/after installation (lithium grease suggested).

Application:

  • ANSI A2134 (Brass)
  • ANSI A5134 (Stainless steel)
  • Assembled right hand
  • Removable pin

How to tell the difference between Residential Hinge and Commercial Hinge


General - US Finishes 630 - Satin Stainless Steel/ US32D or US15 - Satin Nickel or US3 - Polished Brass or US10R - Antique Bronze
Brand Hager
Hinge Height 4.0" Hi
Hinge Width 4.0" Wi
Hinge Grade/Thickness Residental Wt .085 to .106
Hinge Type Full Mortise
Hinge Options Plain Bearing
Base Material Stainless Steel, Brass
Hinge Corners Half Square-Half 5/8 Radius
