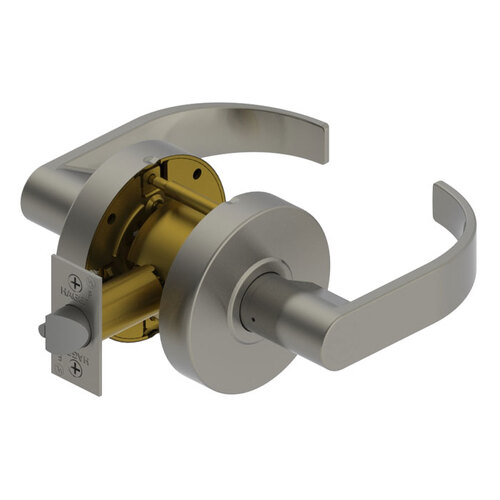

Hager 2510 ARC Grade 2 Passage Lever Latchset
Function Information:
The Hager 2510 ARC is a heavy-duty, commercial-grade cylindrical lockset designed for high-traffic interior openings that do not require locking. Featuring the elegant, curved Archer (ARC) lever design, this latchset is the perfect blend of architectural aesthetics and industrial-strength durability. Certified to ANSI/BHMA Grade 2 standards, it is engineered to provide reliable performance in schools, offices, and healthcare facilities.
Performance and Reliability
As a Passage Function (ANSI F75), both levers are always active, making it the ideal choice for hallways, storage closets, and common areas where free egress and entry are required. The Hager 2510 is built with a heavy-duty steel chassis and a zinc dichromate finish for superior corrosion resistance. It is UL/cUL listed for use on fire-rated doors for up to 3 hours, ensuring compliance with strict life-safety building codes.
Accessible and Secure Design
The Archer lever is fully ADA compliant, providing a comfortable grip and easy operation for all users. The latchset features a non-handed design, allowing it to be installed on both left and right-handed doors without modification. To maintain a clean, professional appearance and improve security, the Hager 2500 Series utilizes a design with no exposed mounting screws, reducing the risk of tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Passage (ANSI F75) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

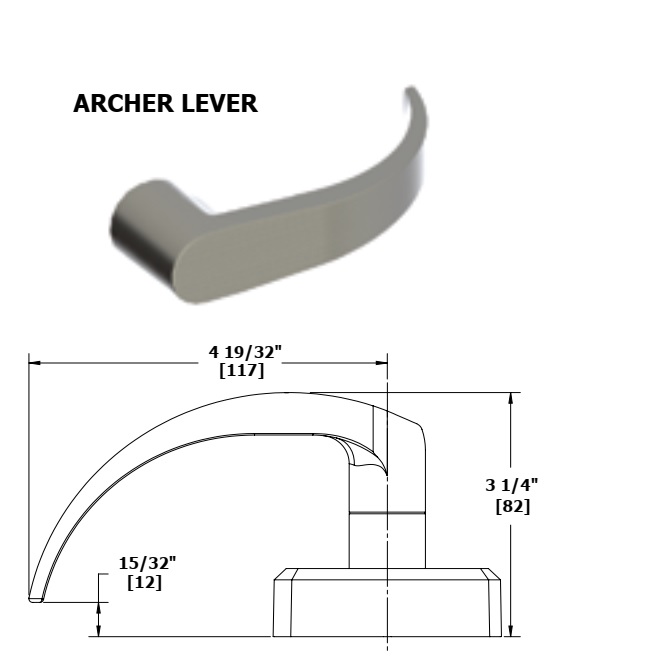

| Lever Style | Archer (ARC) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
| Warranty | 5-Year Limited Warranty |
Key Product Highlights
- Architectural Style: The Archer (ARC) lever offers a modern, ergonomic look that complements contemporary interior designs.
- Fire-Rated Safety: Rigorously tested and UL listed for 3-hour fire doors, providing essential protection for commercial spaces.
- Simplified Installation: Non-handed levers and a cylindrical chassis make for a fast, straightforward install on standard door preps.
- Professional Finish: Available in high-quality finishes like US26D Satin Chrome to match existing facility hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | ARC - Archer |
| Series | Hager - 2500 Series |
