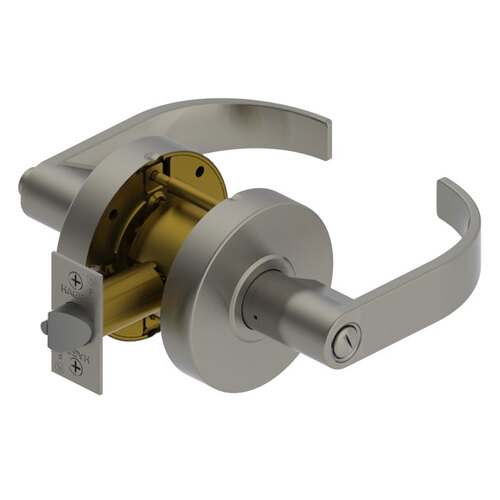

Hager 2540 ARC Grade 2 Privacy Lever Latchset
Function Information:
The Hager 2540 ARC is a heavy-duty, commercial-grade cylindrical lockset designed specifically for areas requiring privacy, such as restrooms, dressing rooms, and private offices. Featuring the elegant, sweeping Archer (ARC) lever design, this latchset provides a sophisticated architectural look without sacrificing industrial strength. Certified to ANSI/BHMA Grade 2 standards, it is built to deliver reliable performance in professional and multi-family residential environments.
Reliable Privacy and Safety
As a Privacy Function (ANSI F76), the latchbolt is operated by a lever from either side unless the outside lever is locked by the inside push button. Safety is a priority: the inside lever always allows for free egress, and the lock features an outside emergency release that can be operated with a small tool if access is required from the exterior. Turning the inside lever or closing the door automatically releases the push button, preventing accidental lockouts.
Ergonomic Design and Durable Build
The Archer lever is fully ADA compliant, offering an easy-to-grip curved profile that is accessible to all users. The Hager 2500 Series is engineered with a heavy-gauge steel chassis and a zinc dichromate finish for superior corrosion resistance. With a design that features no exposed mounting screws, the 2540 ARC provides a clean, high-end appearance while increasing resistance to tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Privacy (ANSI F76) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | Archer (ARC) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
| Warranty | 5-Year Limited Warranty |
Key Product Highlights
- Smooth Ergonomics: The Archer (ARC) lever provides a modern, comfortable grip that meets all accessibility requirements.
- Automatic Unlocking: The privacy mechanism automatically resets when the door is closed or the inside handle is turned, ensuring the room is never inadvertently left locked.
- Fire-Rated Security: UL listed for 3-hour fire doors, making it compliant with strict commercial building and life-safety codes.
- Refined Aesthetics: Available in high-quality finishes like US26D Satin Chrome to match modern architectural hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | ARC - Archer |
| Series | Hager - 2500 Series |
| Occupancy Indicator | No |
