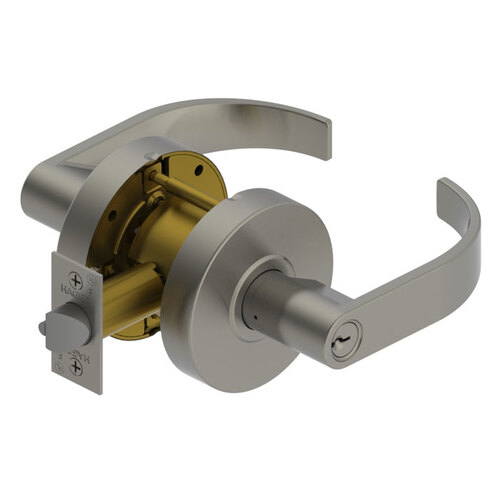

Hager 2550 ARC Grade 2 Entry/ Office Lever Lockset (Push Button)
Function Information:
The Hager 2550 ARC is a heavy-duty, commercial-grade cylindrical lockset designed for primary entry points and office doors requiring keyed security. As an Entry/Office Function (ANSI F81), the exterior lever can be locked or unlocked via an interior push button or an exterior key. Featuring the elegant, sweeping Archer (ARC) lever design, this lockset provides a sophisticated architectural profile while delivering the durability required for high-traffic business environments.
Versatile Security for Professional Spaces
The Hager 2550 offers flexible security management for any professional setting. Pushing the interior button locks the outside lever until it is unlocked with a key from the outside or by turning the inside lever. For added protection, the deadlocking latchbolt prevents "shimming" or forced entry. The lock is non-handed, ensuring a seamless fit for any door swing without the need for complex field reversals.
Industrial Strength and ADA Compliance
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series is built with a heavy-gauge steel chassis and a zinc dichromate finish for maximum corrosion resistance. The Archer lever is fully ADA compliant, providing a comfortable, ergonomic grip that is accessible to all users. With no exposed mounting screws, the 2550 ARC provides a clean, high-end appearance that is also highly resistant to tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Entry / Office (ANSI F81) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

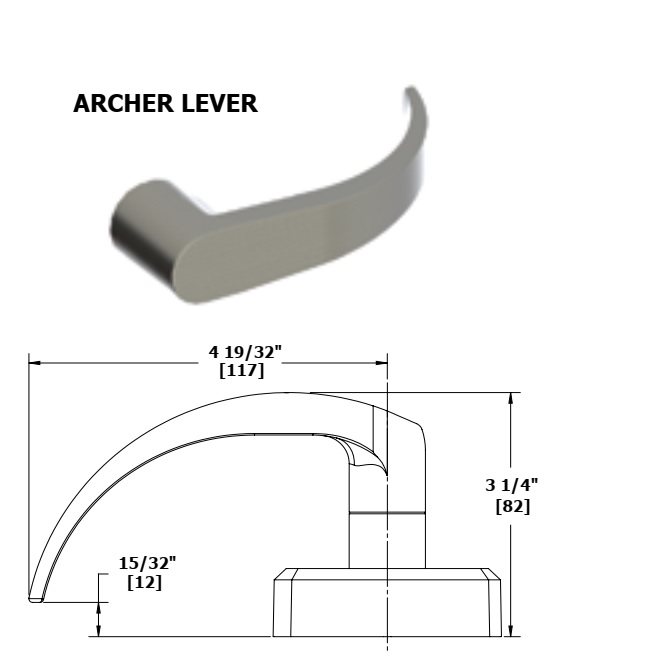

| Lever Style | Archer (ARC) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
| Warranty | 5-Year Limited Warranty |
Key Product Highlights
- Dual Locking Modes: Features an interior push button for quick privacy and an exterior key cylinder for secure access control.
- Deadlocking Latchbolt: 1/2" throw latchbolt includes a deadlocking feature to prevent unauthorized retraction.
- Fire-Rated Safety: Rigorously tested and UL listed for 3-hour fire doors, ensuring code compliance for commercial properties.
- Refined Aesthetics: Available in high-durability finishes like US26D Satin Chrome to complement modern architectural hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F82A - Office/ Entry |
| Trim Design | ARC - Archer |
| Series | Hager - 2500 Series |
