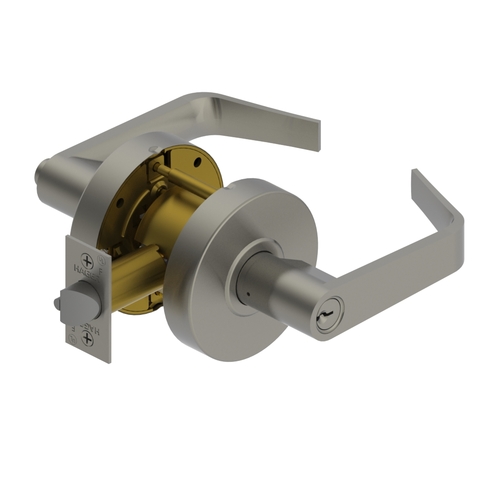

Hager 2550 WTN Grade 2 Entry/Office Lever Lockset
(Push Button)
Function Information:
The Hager 2550 WTN is a heavy-duty, commercial-grade cylindrical lockset designed for primary entry points and office doors requiring keyed security. As an Entry/Office Function (ANSI F81), the exterior lever can be locked or unlocked via an interior push button or an exterior key. Featuring the professional Withnell (WTN) lever design, this lockset provides a clean, modern look while delivering the durability required for high-traffic business environments.
Versatile Security for Professional Spaces
The Hager 2550 offers flexible security management for any office setting. Pushing the interior button locks the outside lever until it is unlocked with a key from the outside or by turning the inside lever. For added convenience, the deadlocking latchbolt prevents "shimming" or forced entry, providing a reliable barrier for your facility. The lock is non-handed, ensuring a seamless fit for any door swing without complex field adjustments.
Industrial Strength and ADA Compliance
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series is built with a heavy-gauge steel chassis and a zinc dichromate finish for maximum corrosion resistance. The Withnell lever is fully ADA compliant, allowing for easy operation without tight grasping or twisting. With no exposed mounting screws, the 2550 WTN provides a sleek architectural profile that is also highly resistant to tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Entry / Office (ANSI F81) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | Withnell (WTN) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
| Warranty | 5-Year Limited Warranty |
Key Product Highlights
- Dual Locking Modes: Features an interior push button for quick privacy and an exterior key cylinder for secure access control.
- Deadlocking Latchbolt: 1/2" throw latchbolt includes a deadlocking feature to prevent unauthorized retraction.
- Fire-Rated Safety: Rigorously tested and UL listed for 3-hour fire doors, ensuring code compliance for commercial properties.
- Architectural Finish: Available in high-durability finishes like US26D Satin Chrome to complement existing door hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F82A - Office/ Entry |
| Trim Design | WTN - Withnell |
| Series | Hager - 2500 Series |
