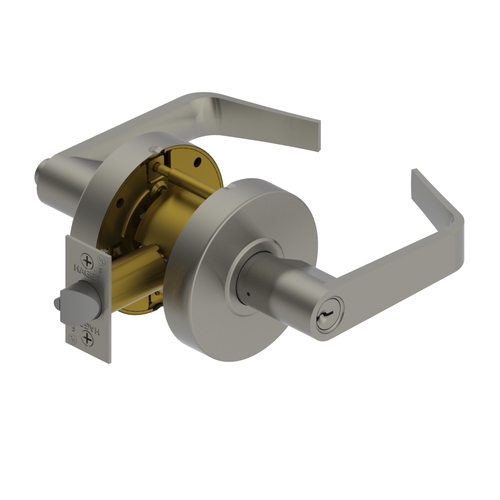

Hager 2553 WTN Grade-2 Entrance Lever Lock
(Thumb Turn)
Function Information:
The Hager 2553 WTN is a professional-grade, cylindrical lockset designed for entry points that require consistent keyed security. As an Entrance Function (ANSI F109), the lock is operated by a lever from either side unless the outside lever is locked by the interior thumb turn or an exterior key. Featuring the modern, ergonomic Withnell (WTN) lever design, this latchset offers a perfect balance of architectural style and heavy-duty performance.
Enhanced Security and Controlled Access
The Hager 2553 is engineered for reliability in standard-duty commercial applications. The interior thumb turn allows for quick, manual locking and unlocking from the inside, while the exterior key cylinder provides secure access control. For added protection, the deadlocking latchbolt is designed to prevent "shimming" or other common forms of forced entry. This lockset is non-handed, making it a versatile solution for any door swing in your facility.
Commercial Durability and ADA Compliance
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for maximum corrosion resistance. The Withnell lever is fully ADA compliant, ensuring that all users can operate the door without the need for tight grasping or twisting. Furthermore, the design includes no exposed mounting screws, providing a clean, professional aesthetic that is significantly more resistant to tampering.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Entrance / Entry (ANSI F109) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

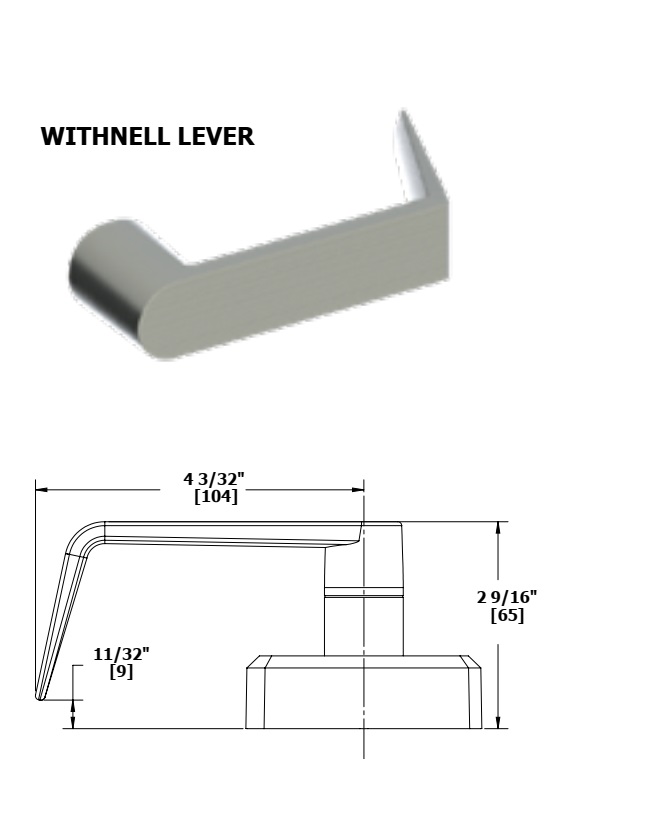

| Lever Style | Withnell (WTN) |
| Locking Mechanism | Interior Thumb Turn / Exterior Key |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Thumb Turn Convenience: Provides easy manual locking for occupants without the need for a key on the interior.
- Deadlocking Latchbolt: Features a 1/2" throw with a deadlocking feature to prevent unauthorized retraction or "loiding."
- Life-Safety Compliant: Rigorously tested and UL listed for 3-hour fire-rated doors, meeting essential commercial building codes.
- Professional Finish: Available in high-performance finishes like US26D Satin Chrome to match existing facility hardware perfectly.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | WTN - Withnell |
| Series | Hager - 2500 Series |
