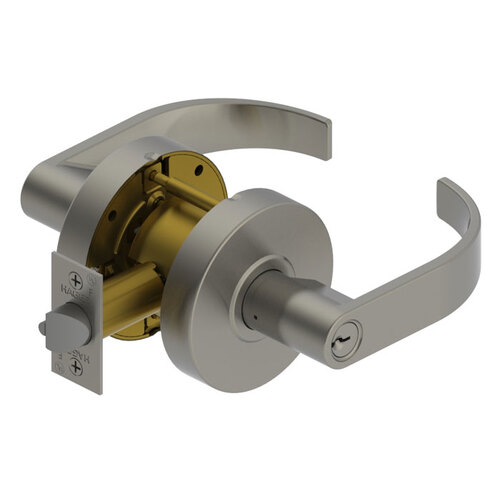

Hager 2570 ARC Grade 2 Classroom Lever Lockset
Function Information:
The Hager 2570 ARC is a heavy-duty, commercial-grade cylindrical lockset specifically engineered for school environments and training facilities. As a Classroom Function (ANSI F84), the exterior lever is locked or unlocked via a key, while the interior lever remains always active for immediate egress. Featuring the elegant, sweeping Archer (ARC) lever design, this lockset provides a sophisticated architectural look without compromising on the high-level security required for student and staff safety.
Advanced Security for Educational Facilities
The primary role of the Hager 2570 is to provide controlled access while ensuring life-safety compliance. Because the outside lever can only be locked or unlocked by key, it prevents unauthorized locking from the inside of the room. For added protection against forced entry, the deadlocking latchbolt is designed to resist "shimming" or "loiding" techniques. The lockset is non-handed, allowing for versatile installation on any door swing throughout a campus.
Architectural Durability and Full Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The Archer lever is fully ADA compliant, offering a comfortable, curved grip that is easily operated by all users. To ensure a professional finish and discourage vandalism, the 2570 ARC features no exposed mounting screws, providing a clean, tamper-resistant profile.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Classroom (ANSI F84) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | Archer (ARC) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Key-Driven Exterior Control: The outside lever status is managed strictly by key, giving faculty total control over room security.
- Fail-Safe Interior Egress: The interior handle is never locked, allowing students and staff to exit instantly in an emergency.
- Archer Design Aesthetics: Provides a modern, high-end look that elevates the appearance of contemporary educational buildings.
- Rigorous Fire Safety: UL listed for 3-hour fire doors, ensuring the hardware meets all critical building and life-safety codes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | ARC - Archer |
| Series | Hager - 2500 Series |
