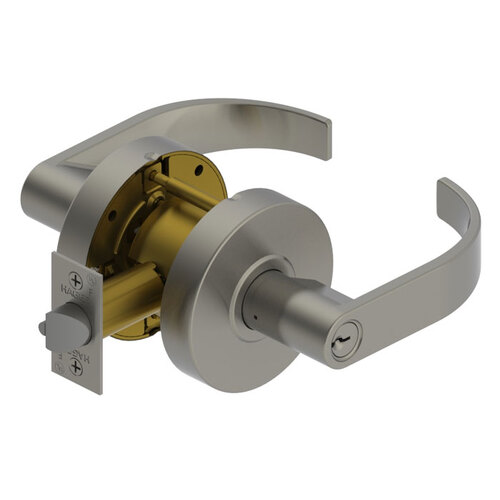

Hager 2580 ARC Grade 2 Storeroom Lever Lock
Function Information:
The Hager 2580 ARC is a heavy-duty, commercial-grade cylindrical lockset designed specifically for secure areas that must remain locked at all times. As a Storeroom Function (ANSI F86), the exterior lever is always rigid and cannot be unlocked; entry is granted only via an exterior key. Featuring the sleek, curved Archer (ARC) lever design, this lockset provides a high-end architectural aesthetic without compromising the strict security protocols required for utility rooms, server closets, and storage areas.
Industrial Security for Controlled Access
The Hager 2580 is the professional standard for "fail-secure" mechanical hardware. Because the outside lever never has a non-locking state, it eliminates the human error of leaving a sensitive door unlocked. For maximum life safety, the inside lever always allows for free egress, ensuring occupants can exit instantly. To further harden the opening, the deadlocking latchbolt is engineered to resist common forced-entry methods such as "shimming" or "loiding."
Durable Engineering and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The Archer lever is fully ADA compliant, providing a comfortable ergonomic grip that requires no tight grasping or twisting to operate. The design features no exposed mounting screws, resulting in a clean, professional profile that is significantly more resistant to tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Storeroom (ANSI F86) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

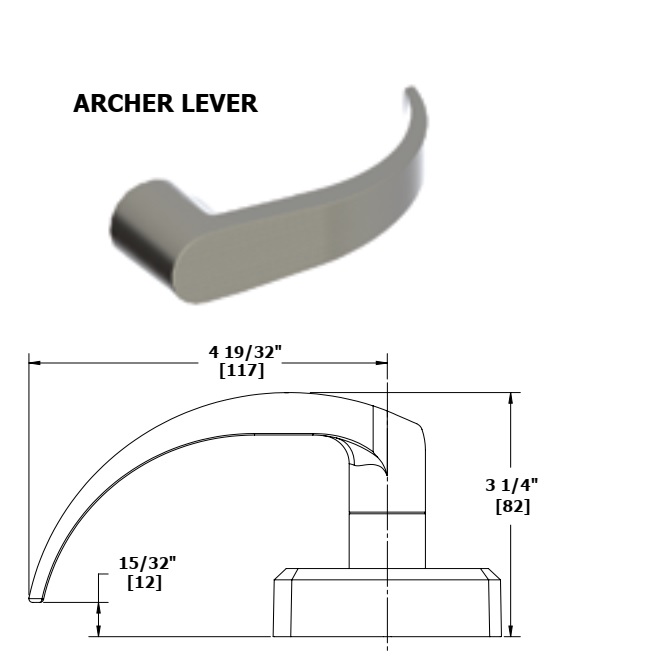

| Lever Style | Archer (ARC) |
| Exterior Status | Always Rigid / Key Required for Entry |
| Interior Status | Always Active (Free Egress) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Permanent Security: The "always locked" exterior ensures that high-value storage areas are never left vulnerable.
- Archer Aesthetic: Offers a modern, sweeping lever design that matches contemporary architectural styles in professional buildings.
- Non-Handed Design: Simplifies installation by allowing the lockset to be fitted to both left and right-handed door swings.
- Safety Certified: UL/cUL listed for up to 3-hour fire doors, ensuring the hardware meets all local building and life-safety codes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | ARC - Archer |
| Series | Hager - 2500 Series |
