Hager 3453 ARC Grade 1 Entry Lever Lockset (Thumb Turn)
Function Information:
The Hager 3453 ARC is an industrial-strength cylindrical lockset designed for maximum security and aesthetic appeal in the most demanding commercial environments. As an Entrance/Entry Function (ANSI F109), this lock is the premier choice for executive offices, consulting rooms, and high-profile entry points. It features a convenient interior thumb turn locking mechanism and the sleek, contemporary Archer (ARC) lever design, combining premium Grade 1 performance with the modern architectural style of the Hager 3400 Series.
Secure Entry with Intuitive Thumb Turn Control
The Hager 3453 is engineered to provide facility managers and business owners with streamlined security management. Rotating the interior thumb turn locks the exterior lever, requiring a key for entry. This thumb turn design offers a clear, tactile indicator of the lock’s status, providing users with immediate confirmation of privacy or security. The inside lever always allows for free egress, ensuring that occupants can exit quickly and safely at all times, fulfilling essential life-safety requirements for commercial door hardware.
Institutional Engineering and Modern Design
Certified to ANSI/BHMA Grade 1, the Hager 3400 Series [link] is built to withstand over one million cycles, making it the top-tier selection for hospitals, universities, and high-traffic government buildings. The Archer lever is fully ADA compliant, offering a curved, ergonomic profile that is easily operated by all users. To ensure a professional finish and superior resistance to vandalism, the 3453 ARC features no exposed mounting screws and utilizes a secure thru-bolt installation for a rigid, permanent bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series [link] |
| Function | Entrance/Entry (ANSI F109) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Heavy Duty) |

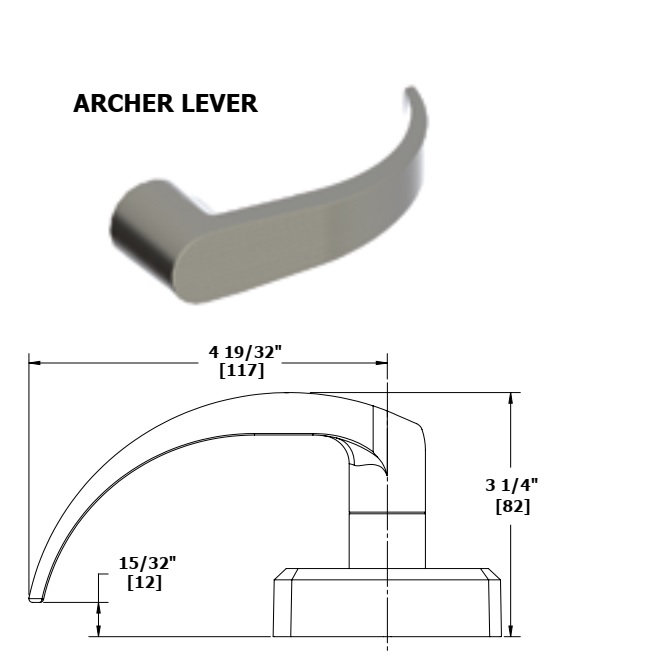

| Lever Style | Archer (ARC) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Locking Mechanism | Interior Thumb Turn / Key Exterior |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Grade 1 Certified Durability: Specifically engineered for the highest traffic institutional applications, providing a long lifecycle in 24/7 facilities.
- Modern Archer Aesthetic: The ARC lever offers a sleek, swept-in profile that coordinates perfectly with contemporary architecture and high-end commercial interiors.
- Vandal-Resistant Chassis: Integrated thru bolts and concealed fasteners provide a robust barrier against hardware tampering and accidental loosening.
- Code-Compliant Safety: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and life-safety codes required for commercial projects.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | ARC - Archer |
| Series | Hager - 3400 Series |
