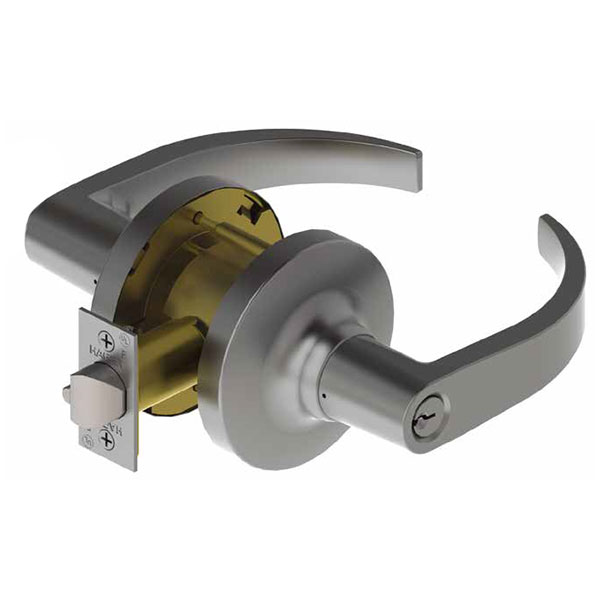

Hager 3480 ARC Grade 1 Storeroom Lever Lockset
The Hager 3480 ARC is an extra heavy-duty cylindrical lockset designed for high-security commercial applications where aesthetic appeal and uncompromising durability are required. As a Storeroom Function (ANSI F86), this hardware is the premier choice for securing IT rooms, pharmaceutical storage, and janitorial closets. Featuring the sleek, swept-in Archer (ARC) lever design, this lockset provides a modern architectural profile while delivering the Grade 1 performance necessary for the most abusive institutional environments.
Maximum Security for Restricted Access
The Hager 3480 is engineered for "always-locked" security. The exterior lever is fixed and does not rotate unless a key is inserted, ensuring that sensitive areas are never accidentally left unlocked. This eliminates the need for manual locking protocols and provides facility managers with a fail-safe security solution. For life-safety compliance, the interior lever always allows for free egress, providing an immediate and unobstructed exit path for occupants at all times.
Institutional Engineering and Contemporary Style
Part of the Hager 3400 Series, the 3480 ARC is built to exceed one million test cycles, making it a staple for hospitals, universities, and government facilities. The Archer lever is fully ADA compliant, offering an ergonomic curved grip that meets modern accessibility standards. To ensure a professional finish and superior resistance to vandalism, the lock features concealed mounting screws and is secured via a rugged thru-bolt installation, keeping the chassis perfectly aligned under high-frequency use.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Storeroom (ANSI F86) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Extra Heavy Duty) |

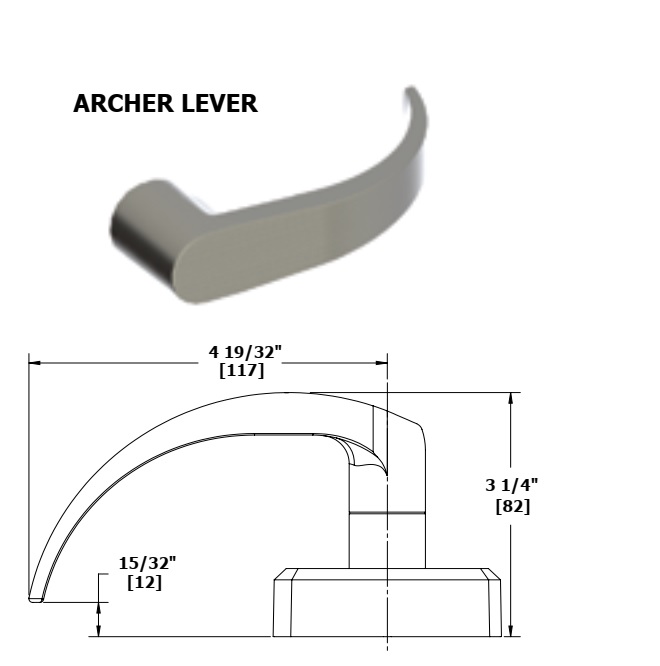

| Lever Style | Archer (ARC) |
| Cylinder | 6-Pin, C Keyway (Standard); LFIC/SFIC options available |
| Locking Mechanism | Fixed Exterior / Key Entry Only |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Handing | Non-Handed (Fully Reversible) |
Standards, Compliance & Repository Access
To assist architects and contractors with technical submittals, the Hager 3480 ARC meets the following industry certifications. For detailed Cut Sheets, Installation Templates, and Parts Lists, visit our Series Pages:
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free accessibility.
- Windstorm Rating: Certified for ANSI A250.13 (Severe Windstorm Resistant).
- Vandal Resistance: Utilizing concealed fasteners and robust thru-bolt mounting to resist tampering and forced entry.
Key Product Highlights
- Constant Exterior Security: The outside lever is always locked; key is required for every entry to prevent unauthorized access.
- Modern Archer Aesthetic: The ARC lever provides a sophisticated, curved profile that coordinates perfectly with contemporary commercial interiors.
- Extra Heavy-Duty Construction: Designed for a lifecycle of over one million cycles in high-traffic, 24/7 facilities.
- Vandal-Resistant Design: Features a heavy-duty chassis and secure thru-bolt installation to maintain structural integrity and prevent lever sag.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | ARC - Archer |
| Series | Hager - 3400 Series |
