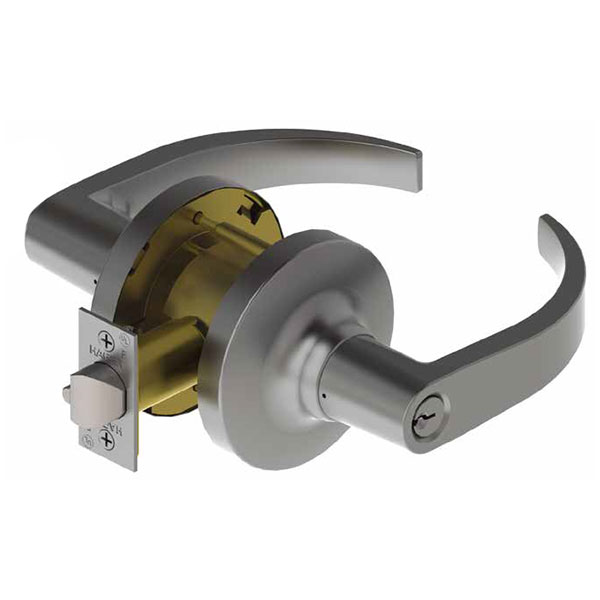

Hager 3482 ARC Grade 1 Institution Lever Lockset
Function Information:
The Hager 3482 ARC is a specialized, industrial-strength cylindrical lockset engineered for maximum-security environments where absolute control over movement is required. Operating as an Institution/Asylum Function (ANSI F87), this hardware is designed with rigid levers on both the interior and exterior. Entry and exit are only possible via a physical key from either side. Featuring the sleek, swept-in Archer (ARC) lever design, this lockset provides a high-end architectural look for psychiatric wards, detention centers, high-security laboratories, and secure evidence rooms.
Total Access Control for High-Risk Areas
The Hager 3482 provides an uncompromising level of security, ensuring that no occupant can move through the opening without authorized key access. Unlike standard storeroom or office locks, the Institution Function removes the possibility of "free egress" or accidental unlocking, making it essential for facilities that require strict monitoring of all foot traffic. The Archer lever is ADA compliant, providing an ergonomic, curved grip that ensures authorized personnel can operate the heavy-duty mechanism with ease.
Extreme Durability and Vandal-Resistant Engineering
Part of the Hager 3400 Series, the 3482 ARC is built to exceed ANSI/BHMA Grade 1 standards, surviving over one million test cycles. The chassis is constructed with heavy-gauge steel and zinc dichromate plating to prevent corrosion. To combat attempted forced entry, the lock features a clutching/free-wheeling lever mechanism that allows the handle to rotate freely when locked without retracting the latch. A secure thru-bolt installation ensures a rigid, permanent bond to the door that resists sagging and tampering.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Institution / Asylum (ANSI F87) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Extra Heavy Duty) |

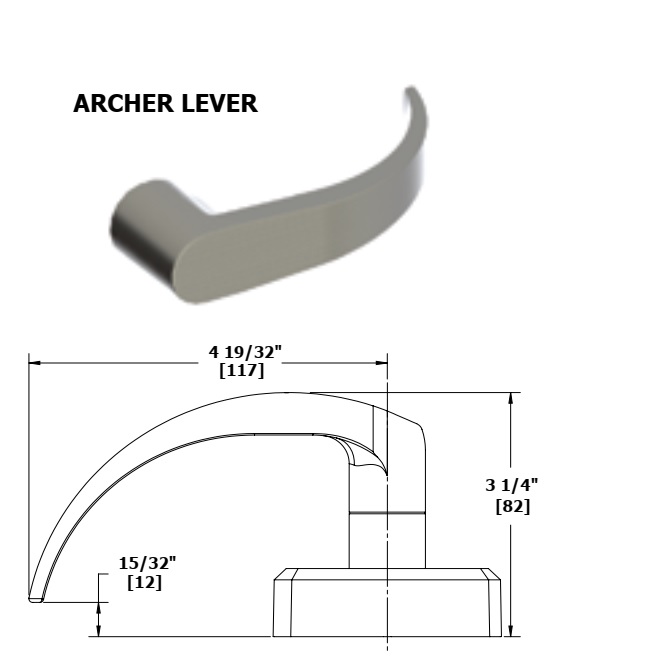

| Lever Style | Archer (ARC) |
| Cylinder | Dual 6-Pin, C Keyway (Key required for both sides) |
| Locking Type | Both Levers Always Rigid/Fixed |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
Standards, Compliance & Repository Access
To assist with rigorous institutional submittals and building code safety audits, the Hager 3482 ARC meets the following industry benchmarks. For detailed Installation Templates, Cut Sheets, and Parts Lists, visit our Series Pages:
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free access.
- Windstorm Compliance: Certified for ANSI A250.13 (Severe Windstorm Resistant).
- Vandal Resistance: Equipped with free-wheeling levers and thru bolts to prevent mechanical failure during attempted forced entry.
Key Product Highlights
- Maximum Security Oversight: Keyed control on both sides ensures total oversight of movement through the door in sensitive facilities.
- Modern Archer Aesthetic: The ARC lever offers a contemporary, professional profile that coordinates perfectly with high-end commercial interiors.
- Million-Cycle Durability: Engineered to withstand the most abusive environments where hardware failure is not an option.
- Tamper-Proof Design: No exposed mounting screws and a heavy-duty thru-bolt design prevent unauthorized hardware removal or lever sag.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F87 - Asylum |
| Trim Design | ARC - Archer |
| Series | Hager - 3400 Series |
