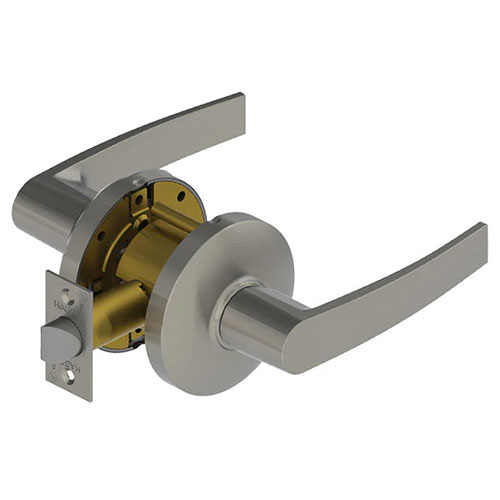

Hager 3510 AUG Grade 2 Passage Lever Latchset
Function Information:
The Hager 3510 AUG is a premium, commercial-grade cylindrical lockset that combines the bold, modern lines of the August (AUG) lever with institutional-strength durability. Part of the high-performance 3500 Series, this latchset is designed for high-traffic interior openings where security locking is not required but operational longevity is essential. Its clean, linear aesthetic makes it a favorite for contemporary offices, upscale multi-family housing, and modern healthcare facilities.
Architectural Excellence Meets Industrial Build
Unlike standard-duty hardware, the Hager 3510 features a robust cylindrical chassis and a zinc dichromate finish for maximum corrosion resistance. As a Passage Function (ANSI F75), both levers are always active, ensuring unhindered movement through hallways, common areas, and non-secure storage spaces. The August lever's ergonomic, straight-profile design is fully ADA compliant, providing a comfortable and accessible grip for all users.
Performance-Tested Safety
Certified to ANSI/BHMA Grade 2 standards, the 3500 Series is engineered to withstand hundreds of thousands of cycles in demanding environments. It is UL/cUL listed for use on fire-rated doors for up to 3 hours, ensuring your facility remains compliant with strict life-safety and building codes. To preserve the architectural integrity of the opening, the design features no exposed mounting screws, which also serves as a deterrent against unauthorized tampering or vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Passage (ANSI F75) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | August (AUG) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Contemporary August Aesthetic: The AUG lever provides a clean, professional profile that fits seamlessly into modern architectural designs.
- Non-Handed Installation: Field-reversible design allows for quick installation on both left and right-handed doors without special tools.
- Vandal-Resistant Chassis: Concealed mounting screws protect the hardware from tampering while maintaining a smooth, high-end look.
- Heavy-Duty Cycle Life: Built to exceed standard Grade 2 requirements, providing a long service life in high-frequency commercial applications.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | AUG- August |
| Series | Hager - 3500 Series |
