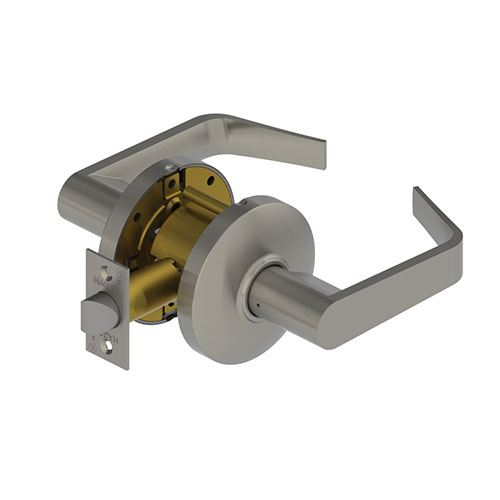

Hager 3510 WTN Grade 2 Passage Lever Latchset
Function Information:
The Hager 3510 WTN is a heavy-duty, commercial-grade cylindrical lockset designed for high-traffic interior openings where security locking is not required. As a Passage Function (ANSI F75), both levers are always active, making it the ideal solution for hallways, common areas, and non-secure storage closets. Featuring the popular Withnell (WTN) lever design, this latchset combines modern architectural aesthetics with a robust build that exceeds ANSI/BHMA Grade 2 standards.
Industrial Performance and Reliability
Engineered for the demands of high-frequency commercial applications, the Hager 3500 Series features a heavy-duty cylindrical chassis with a zinc dichromate finish for maximum corrosion resistance. It is UL/cUL listed for up to 3-hour fire-rated doors, ensuring your facility remains compliant with strict life-safety and building codes. The non-handed design allows for flexible installation on both left and right-handed doors, simplifying the hardware scheduling process.
Accessible and Secure Installation
The Withnell lever is fully ADA compliant, providing a comfortable, ergonomic grip that ensures accessibility for all users. To maintain a clean, professional look and discourage vandalism, the design features no exposed mounting screws. The standard ASA strike and stainless steel latchbolt with a 1/2" throw ensure a secure fit and a smooth, reliable latching action for every cycle.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Passage (ANSI F75) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | Withnell (WTN) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Universal Handing: Non-handed levers allow for fast, hassle-free installation on any door swing.
- Tamper-Resistant Build: Concealed mounting screws provide a streamlined architectural look and extra protection against unauthorized hardware removal.
- High-Frequency Durability: Built to withstand the constant use of commercial environments, offering a longer service life than standard-duty alternatives.
- Professional Finish: Available in high-traffic finishes like US26D Satin Chrome to match existing facility hardware seamlessly.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | WTN - Withnell |
| Series | Hager - 3500 Series |
