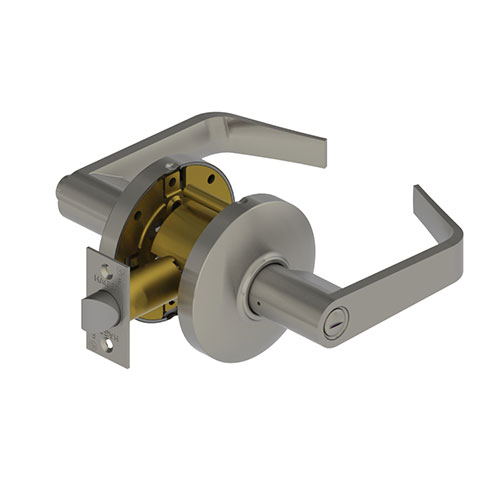

Hager 3540 WTN Grade 2 Privacy Lever Latchset
Function Information:
The Hager 3540 WTN is a professional-grade cylindrical lockset specifically designed for commercial areas where privacy is essential, such as restrooms, changing rooms, and private offices. As a Privacy Function (ANSI F76), this latchset provides reliable occupancy control without the need for a key. Featuring the modern, ergonomic Withnell (WTN) lever design, it offers a clean architectural profile while meeting the rigorous performance standards of ANSI/BHMA Grade 2.
Seamless Privacy and occupant Safety
Security and life safety are built into every component of the Hager 3540. The outside lever is easily locked by the interior push button and automatically unlocks when the interior lever is turned or the door is closed, preventing accidental lockouts. For emergency situations, the exterior lever features a discrete emergency release that can be operated with a small tool to grant access. The non-handed design ensures this lever can be installed on any door swing without field modification.
Commercial Durability and ADA Compliance
Built to withstand high-frequency use in demanding environments, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for maximum corrosion resistance. The Withnell lever is fully ADA compliant, providing a comfortable grip that allows for easy operation without the need for tight grasping or twisting. To ensure a professional and secure installation, the 3540 WTN features no exposed mounting screws, deterring unauthorized tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Privacy (ANSI F76) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

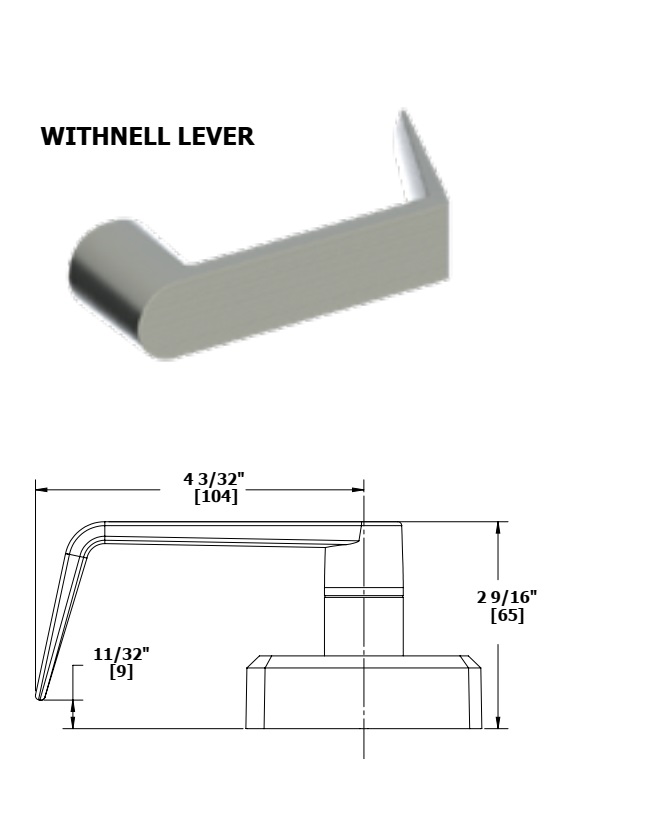

| Lever Style | Withnell (WTN) |
| Chassis | Heavy-gauge steel, zinc dichromated |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Push-Button Privacy: Quickly secures the room from the inside; automatically resets upon exit to ensure the room is ready for the next user.
- Emergency Access: Includes an exterior emergency release to ensure occupant safety and facility access when required.
- Vandal-Resistant Build: Concealed mounting screws and thru bolts ensure the lever remains stable and secure during high-traffic use.
- Code-Compliant Safety: UL listed for 3-hour fire doors, meeting the critical safety requirements for commercial and institutional buildings.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | WTN - Withnell |
| Series | Hager - 3500 Series |
| Occupancy Indicator | No |
