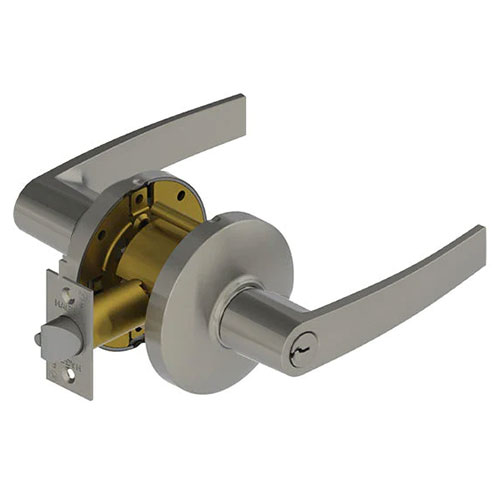

Hager 3553 AUG Grade 2 Entry Lever Lockset (Thumb Turn)
Function Information:
The Hager 3553 AUG is a heavy-duty, commercial-grade cylindrical lockset that combines the bold, linear aesthetic of the August (AUG) lever with institutional-strength security. As an Entrance Function (ANSI F109), this lock is designed for primary access points where manual control is preferred. The lock is operated by a lever from either side unless the outside is secured by the interior thumb turn or an exterior key, providing a reliable and tactile locking solution for professional environments.
Sophisticated Security and Controlled Access
The Hager 3553 is the ideal choice for office suites, conference rooms, and commercial entryways. The interior thumb turn offers a clear, manual locking state for occupants, while the exterior key cylinder ensures secure access for authorized personnel. For maximum life safety, the inside lever always allows for free egress, ensuring an immediate exit path during emergencies. To safeguard against forced entry, the deadlocking latchbolt is specifically engineered to resist "shimming" and unauthorized retraction.
Industrial Engineering and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The August lever is fully ADA compliant, providing a comfortable, modern grip that allows for easy operation without the need for tight grasping or twisting. With no exposed mounting screws and a secure thru-bolt installation, the 3553 AUG maintains a sleek profile that is highly resistant to tampering and vandalism in high-traffic areas.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Entrance / Entry (ANSI F109) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

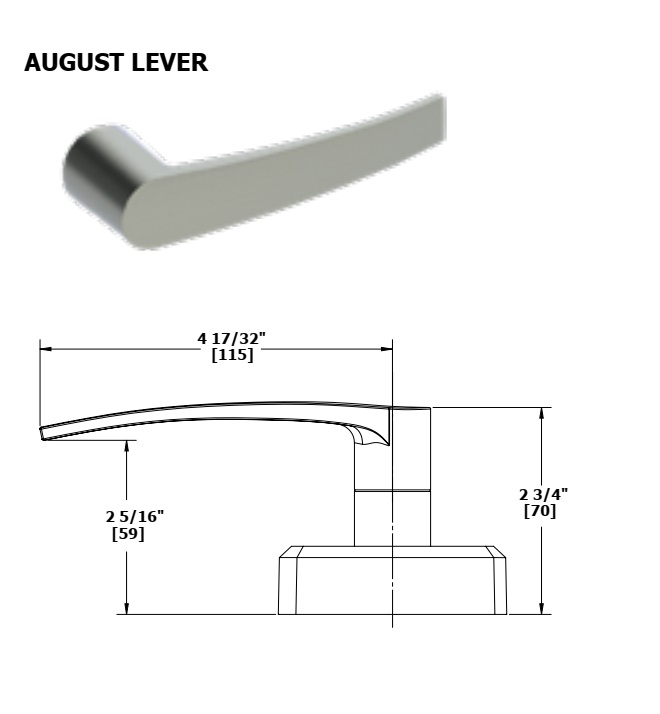

| Lever Style | August (AUG) |
| Locking Mechanism | Interior Thumb Turn / Exterior Key |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- August Architectural Design: The AUG lever provides a clean, contemporary profile that complements modern executive and professional office interiors.
- Thumb Turn Reliability: Offers a tactile and visible locking mechanism that is preferred by users for quick manual security.
- Enhanced Vandal Resistance: The integrated thru bolts provide a rigid attachment to the door, ensuring the lockset remains stable during rigorous daily use.
- Code-Compliant Safety: UL/cUL listed for 3-hour fire doors, meeting all critical building and life-safety requirements for commercial facilities.
Find Your Installation Instructions and Specification Sheets
For those looking to install or gather more technical details about the Hager 3553 Entry Lever Lock, we’ve organized the essential documents into categories for your convenience.
Installation Instructions
-
3500 Series Lever Installation Instruction - I-LS00768.pdf
-
LFIC Tailpiece and Core Installation Instruction I-LS01977-Rev1.pdf
Specification Sheets
Door Templates
Whether you’re working with a 2-3/4 inch or 2-3/8 inch backset, we’ve got you covered with precise templates:
-
3500 Series Metal Door Template 2-3/4in BS - T-LS00184-Rev03.pdf
-
3500 Series Metal Door Template 2-3/8in BS - T-LS00185-Rev04.pdf
This structured approach ensures you have quick access to both installation guides and specification sheets, making your task easier and more efficient.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | AUG- August |
| Series | Hager - 3500 Series |
