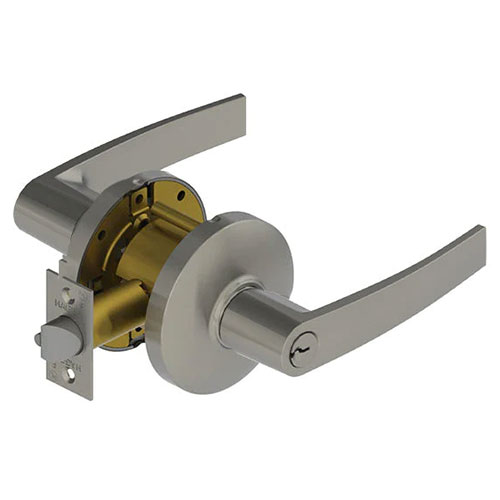

Hager 3570 AUG Grade 2 Classroom Lever Lockset
Function Information:
The Hager 3570 AUG is a heavy-duty, commercial-grade cylindrical lockset specifically designed for the rigorous demands of educational institutions and public buildings. As a Classroom Function (ANSI F84), the exterior lever is locked or unlocked solely by a key, while the interior lever is always active for immediate egress. Featuring the bold, modern August (AUG) lever design, this lockset provides a clean, linear architectural aesthetic while ensuring the highest standards of student and staff safety.
Institutional Security and Life-Safety Compliance
In a classroom environment, security control must remain in the hands of authorized personnel. The Hager 3570 ensures that the locking state of the door cannot be tampered with from the inside, preventing unauthorized lockouts. For maximum safety, the interior handle always allows for free egress, meeting all fire and life-safety codes. The deadlocking latchbolt provides an extra layer of security, specifically engineered to resist "shimming" and other forced-entry methods common in high-traffic public spaces.
Durable Engineering and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series is built with a heavy-gauge steel chassis and a zinc dichromate finish for superior corrosion resistance. The August lever is fully ADA compliant, offering an ergonomic, straight-profile grip that is easily operated by all users. To ensure a professional and secure installation, the 3570 AUG features no exposed mounting screws and utilizes thru-bolt mounting for a rigid, stable attachment that resists the wear and tear of a busy campus.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Classroom (ANSI F84) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

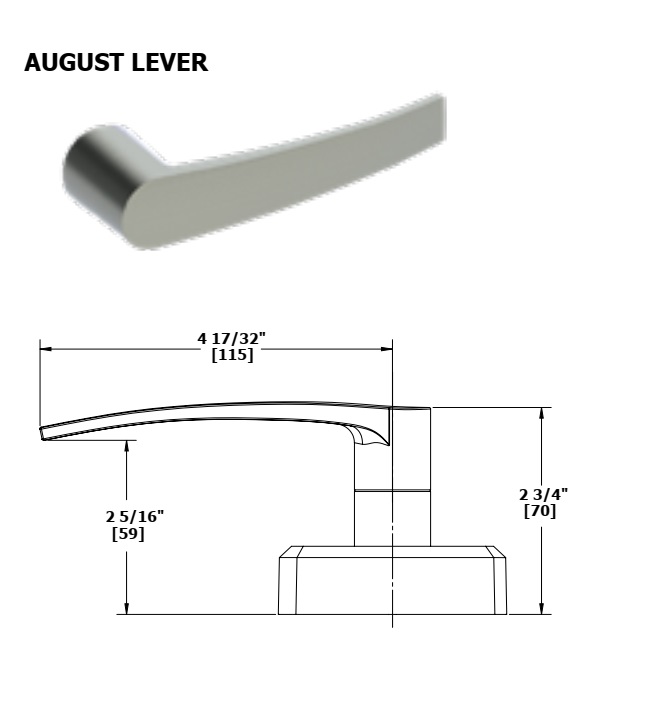

| Lever Style | August (AUG) |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Locking Mechanism | Exterior Key Control Only |
| Interior Status | Always Active (Free Egress) |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Key-Controlled Exterior: Ensures the lock status remains as intended by faculty, preventing accidental or intentional locking from inside the room.
- Modern August Aesthetic: The AUG lever provides a contemporary, professional look that fits seamlessly into modern school and office designs.
- Vandal-Resistant Build: Integrated thru bolts and concealed fasteners provide a robust barrier against hardware tampering and heavy use.
- Code-Compliant Safety: UL/cUL listed for 3-hour fire doors, fulfilling the critical requirements for institutional and commercial building codes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | AUG- August |
| Series | Hager - 3500 Series |
