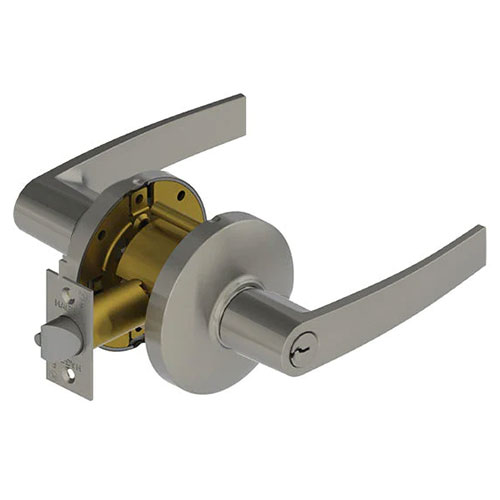

Hager 3579 AUG Grade 2 Keyed Communicating Lever Lockset
Function Information:
The Hager 3579 AUG is a specialized, commercial-grade cylindrical lockset designed for interconnected or "communicating" rooms commonly found in hotels, clinics, and executive suites. As a Communicating Function (ANSI F80), this unique hardware configuration features a keyed lever on one side and a blank plate on the opposite side. This design is ideal for doors that must only be operable from a single side, or for "double door" applications where independent locking control is required from both adjoining rooms. Featuring the bold, linear August (AUG) lever, it provides a modern architectural aesthetic for professional environments.
Specialized Security and Controlled Access
The Hager 3579 is the premier solution for maintaining privacy and security between two separate spaces. With a solid blank plate on one side, there is no lever or cylinder to manipulate, effectively sealing that side of the door. The opposite side features a keyed lever that is locked or unlocked by an exterior key. This function is critical for hotel suites where two doors are used back-to-back in a single frame. To protect against intrusion, the deadlocking latchbolt is engineered to resist "shimming" and forced retraction when the door is closed.
Industrial Build and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The August lever is fully ADA compliant, providing a comfortable straight-profile grip that is easily operated by all users. With no exposed mounting screws and a secure thru-bolt installation, the 3579 AUG offers a clean, professional profile that is highly resistant to tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Communicating (ANSI F80) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

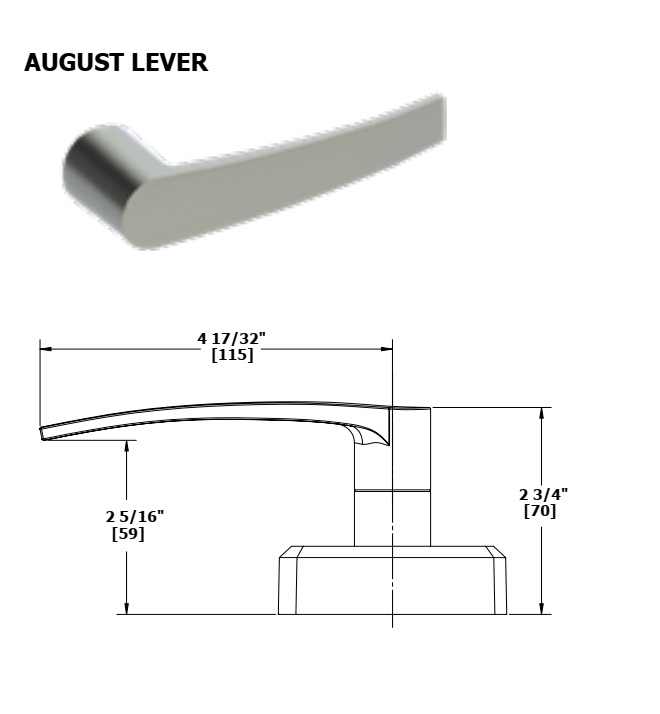

| Lever Style | August (AUG) |
| Configuration | Keyed Lever x Blank Plate |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Communicating Logic: Designed specifically for hotel "connecting" doors where independent security is required from both rooms.
- Modern August Aesthetic: The AUG lever offers a sharp, contemporary look that fits seamlessly into modern professional and hospitality interiors.
- Vandal-Resistant Chassis: Utilizes thru bolts for a rigid attachment to the door, ensuring the hardware remains stable during high-frequency commercial use.
- Life-Safety Certified: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and safety codes required for modern commercial facilities.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F113 - Keyed Communicating |
| Trim Design | AUG- August |
| Series | Hager - 3500 Series |
