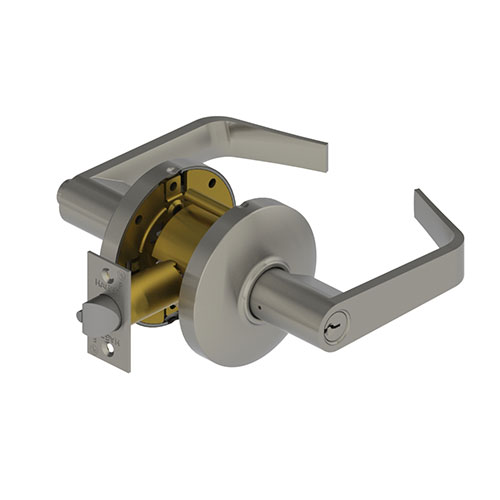

Hager 3579 WTN Grade 2 Keyed Communicating Lever Lockset
Function Information:
The Hager 3579 WTN is a specialized, commercial-grade cylindrical lockset designed for interconnected rooms where access must be strictly controlled from one side only. As a Communicating Function (ANSI F80), this hardware features a keyed lever on one side and a solid blank plate on the other. This configuration is the industry standard for hotel "connecting" rooms, laboratory ante-rooms, and executive suites where a door should only be operable from one direction. Featuring the timeless, ergonomic Withnell (WTN) lever, it provides a neutral architectural profile suitable for any professional environment.
Specialized Security and Controlled Access
The Hager 3579 is engineered for maximum versatility in restricted-access applications. With a solid blank plate on the exterior (or interior, depending on installation), there is no hardware to manipulate from that side, effectively sealing the passage. The opposite side features a keyed lever that is locked or unlocked via an exterior key. This function is critical for maintaining privacy and security between two separate living or working spaces. To protect against unauthorized entry, the deadlocking latchbolt is designed to resist "shimming" and forced retraction when the door is closed.
Institutional Build and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The Withnell lever is fully ADA compliant, providing a comfortable grip that is easily operated without the need for tight grasping or twisting. To ensure a professional finish and discourage tampering, the 3579 WTN features no exposed mounting screws and utilizes a secure thru-bolt installation for a rigid, stable attachment to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Communicating (ANSI F80) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

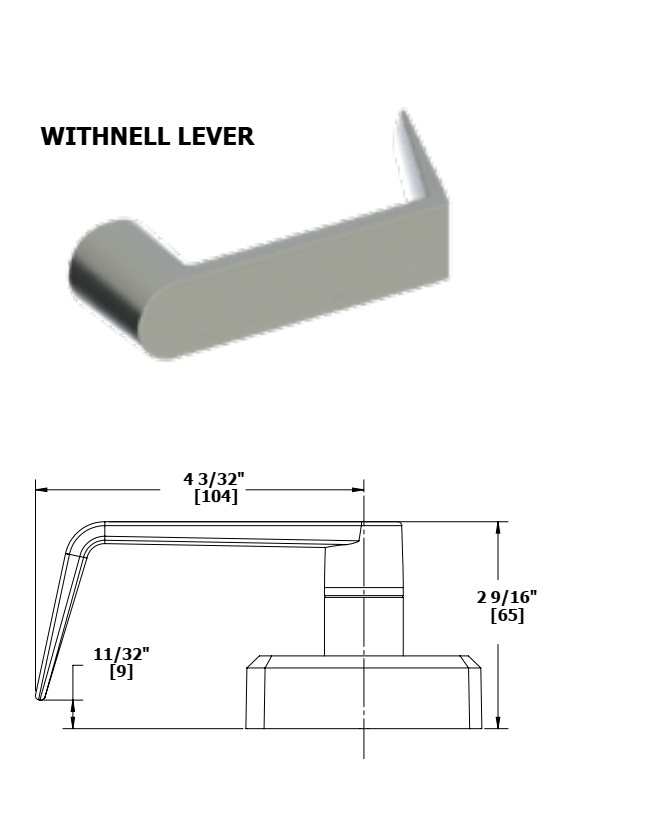

| Lever Style | Withnell (WTN) |
| Configuration | Keyed Lever x Blank Plate |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Communicating Logic: Ideal for back-to-back door installations in hotel suites where independent security is required for each room.
- Ergonomic Withnell Aesthetic: The WTN lever offers a classic, professional look that matches existing hardware in most commercial and institutional settings.
- Vandal-Resistant Chassis: The integrated thru-bolt design ensures the hardware remains secure and stable during high-frequency commercial use.
- Life-Safety Certified: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and safety codes required for modern commercial facilities.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F113 - Keyed Communicating |
| Trim Design | WTN - Withnell |
| Series | Hager - 3500 Series |
