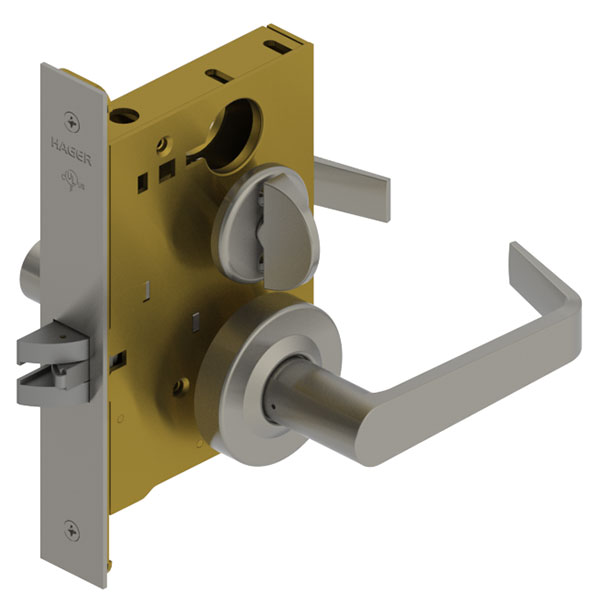

Hager 3840S Privacy Mortise Latchset – Grade 1 Sectional Trim
The Hager 3840S Privacy Mortise Latchset is a heavy-duty commercial hardware solution specifically engineered for areas requiring private access, such as restrooms, dressing rooms, and private offices. This Privacy Function (ANSI F22) set features an internal thumbturn that locks the exterior lever, while the outside rose includes an emergency release for authorized access when needed. By utilizing the Sectional (S) Trim, the 3840S offers a contemporary, low-profile look that is ideal for high-end architectural projects where aesthetics are as important as performance.
As a BHMA Certified Grade 1 device, the 3840S is built to the highest mechanical standards. The sectional rose design provides a clean, minimalist appearance, while the internal mortise lock body is constructed from high-strength steel with a corrosion-resistant coating. This ensures smooth, reliable operation for millions of cycles in high-traffic commercial environments.
Modern Aesthetics & High-Strength Mounting
The Hager 3840S combines the industrial strength of a mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel and prevent handle sagging over time. For a permanent and stable mount, the sectional trim is secured using thru bolts, providing a high-strength, through-the-door connection that keeps the hardware perfectly aligned even under heavy daily use.
Key Features
- Privacy Functionality: Internal thumbturn locks the outside lever; exterior emergency release access (ANSI F22).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and durability.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Sectional Rose Trim: Provides a modern, minimalist architectural look for high-end spaces.
- Heavy-Duty Mortise Body: Case-hardened steel components for maximum longevity and security.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3840S |
| ANSI Function | F22 (Privacy / Bath & Bedroom) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Sectional (S) Rose Design |
| Rose Diameter | 2-7/16" (62 mm) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3840S at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria.
Professional Installation Note
The Hager 3840S is designed for use on both wood and metal doors with a standard mortise prep. Because the sectional trim has a smaller footprint than traditional escutcheon plates, DoorwaysPlus.com recommends ensuring the door face is free of significant damage or oversized bore holes from previous hardware to ensure a clean, professional finish.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| ANSI Mortise Lock Function | F22 - Privacy |
| Series | Hager - 3800 Series |
| Occupancy Indicator | No |
