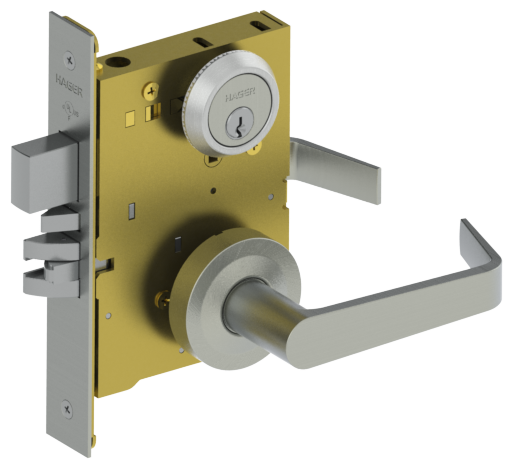

Hager 3856S Corridor Mortise Lockset – Grade 1 Sectional Trim
The Hager 3856S Corridor Mortise Lockset is a high-performance, heavy-duty security solution specifically designed for corridor doors in schools, hospitals, and high-occupancy commercial buildings. This Corridor Function (ANSI F13) set provides a critical balance of security and life safety: the outside lever is locked or unlocked by a key from the outside or by a thumbturn from the inside. When the deadbolt is projected, the inside lever will retract both the deadbolt and the latchbolt simultaneously, providing single-motion egress for emergency situations.
By utilizing the Sectional (S) Trim, the 3856S offers a contemporary, low-profile aesthetic that is ideal for modern architectural projects. As a BHMA Certified Grade 1 device, it is built to the highest mechanical standards for high-frequency use. The heavy-duty mortise lock body is constructed from case-hardened steel, ensuring smooth mechanical performance for millions of cycles.
Life-Safety Security & Modern Architectural Style
The Hager 3856S combines the industrial strength of a mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel, ensuring the handles remain level even after years of constant operation. For a permanent and stable mount, the sectional roses are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the hardware perfectly aligned.
Key Features
- Corridor Functionality: Key or thumbturn locks/unlocks the outside lever; single-motion egress from inside (ANSI F13).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and durability.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Sectional Rose Trim: 2-7/16" diameter roses provide a clean, modern, and minimalist architectural look.
- High-Strength Deadbolt: 1" throw stainless steel deadbolt with saw-resistant hardened steel pins.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3856S |
| ANSI Function | F13 (Corridor / Dormitory) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Sectional (S) Rose Design |
| Rose Diameter | 2-7/16" (62 mm) |
| Door Thickness | Standard 1-3/4" (Fits 1-3/8" to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3856S at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria on touch surfaces.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Cylinder Options | SCC - Schlage C Keyway or Less Cylinder |
| Brand | Hager |
| ANSI Mortise Lock Function | F13 - Dormitory |
| Series | Hager - 3800 Series |
