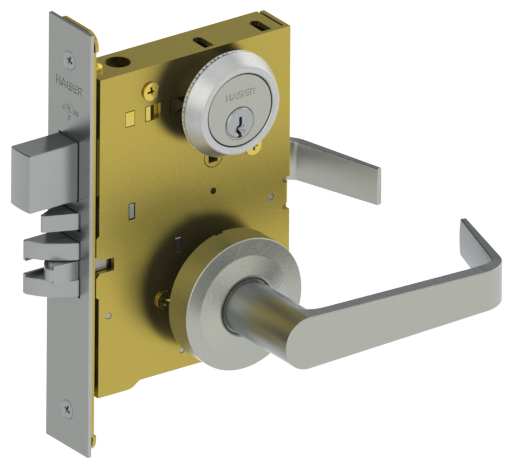

Hager 3882S Institution Mortise Lockset – Grade 1 Sectional Trim
The Hager 3882S Institution Mortise Lockset is a heavy-duty, maximum-security solution designed for high-risk environments where access must be strictly controlled from both sides of the door. This Institution Function (ANSI F30) set—often referred to as a Double Cylinder lock—features rigid levers on both the interior and exterior. Entrance and exit are only possible via a key, which retracts the latchbolt. This configuration is the premier choice for detention centers, psychiatric facilities, and high-security research labs where occupant movement must be monitored and restricted at all times.
By utilizing the Sectional (S) Trim, the 3882S offers a contemporary, low-profile aesthetic that is ideal for modern architectural projects. As a BHMA Certified Grade 1 device, it is built to the highest mechanical standards for extreme industrial use. The heavy-duty mortise lock body is constructed from case-hardened steel, ensuring smooth performance for millions of cycles even in the most demanding environments.
Absolute Access Control & Modern Architectural Style
The Hager 3882S combines the massive strength of an industrial mortise lock with the accessibility of an ADA compliant lever handle. Unlike standard locks, this set eliminates the possibility of unauthorized exit by requiring a key for operation from either side. For a permanent and stable mount, the sectional roses are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the hardware perfectly aligned and resistant to tampering or extreme force.
Key Features
- Institution Functionality: Both levers are always rigid; entry and exit by key only (ANSI F30).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and strength.
- Double Cylinder Design: Maximum security for applications requiring total movement control.
- ADA Compliant: Ergonomic lever handles meet A117.1 Accessibility Code requirements for authorized use.
- Sectional Rose Trim: 2-7/16" diameter roses provide a clean, modern, and minimalist architectural look.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3882S |
| ANSI Function | F30 (Institution / Double Cylinder) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Sectional (S) Rose Design |
| Rose Diameter | 2-7/16" (62 mm) |
| Door Thickness | Standard 1-3/4" (Fits up to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Style Options
Customize your Hager 3882S at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Cylinder Options: Conventional Schlage C Keyway standard; compatible with SFIC (Small Format Interchangeable Core) for high-security key control.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Cylinder Options | SCC - Schlage C Keyway or Less Cylinder |
| Brand | Hager |
| ANSI Mortise Lock Function | F30 - Asylum (dbl cyl) |
| Series | Hager - 3800 Series |
