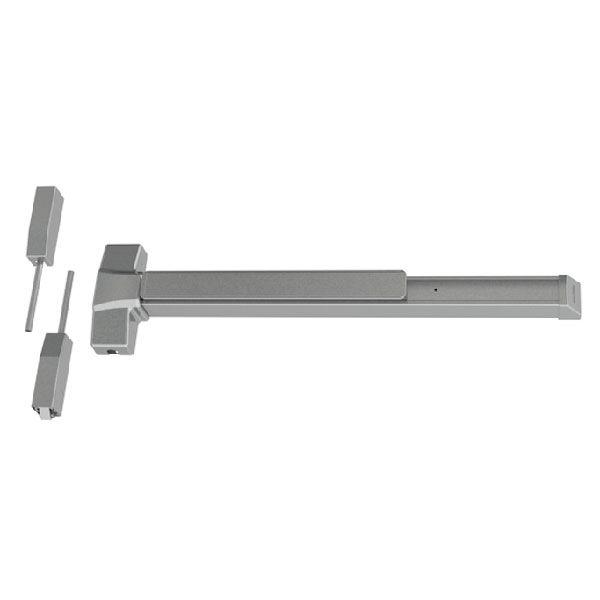

Hager 4501 SVR Exit Device - Non Rated - 3'0"x 7'0" Door
The Hager 4501 SVR is a heavy-duty, Grade 1 Surface Vertical Rod exit device designed for high-traffic double-door applications. Engineered for 36" x 84" (3'0" x 7'0") openings, this panic bar provides secure two-point latching at the top and bottom of the door. As a Non-Rated (Panic Hardware) device, it is the premier choice for secondary exits in schools, office buildings, and retail spaces that require easy egress without the need for a fire-rated barrier.
High-Security Two-Point Latching
The Surface Vertical Rod (SVR) configuration is ideal for double doors where a center mullion is not desired. The Hager 4501 SVR secures the door leaf at both the head (top) and the floor (bottom), providing superior resistance to forced entry. The top strike features a Pullman-type latch, while the bottom strike is designed to be low-profile and ADA compliant. For daily convenience, the device includes hex key dogging, which allows the push bar to be locked down to permit free-flowing "push/pull" traffic during business hours.
Electrified Options & Prefixes
The Hager 4501 SVR can be customized with several electrified prefixes to integrate into modern access control and monitoring systems:
- RX - Request to Exit Switch: Monitors the internal switch to signal authorized egress.
- RX2 - Dual Request to Exit Switches: Provides two separate monitoring signals for system redundancy.
- LM - Latchbolt Monitoring: Notifies the system when the rod/latch is retracted or extended.
- RXLM - Request to Exit and Latchbolt Monitoring: Combined monitoring for both egress and latch status.
- AI - Authorized Ingress: Monitors the exterior trim for authorized entry attempts.
- RXAI - Authorized Ingress with Key Monitoring: High-security tracking of both ingress and physical key usage.
- DE - Delayed Egress: Delays door opening for 15-30 seconds to prevent unauthorized exiting or theft.
- OBDE - Onboard Delayed Egress: An all-in-one, self-contained delayed egress system.
- MLR - Motorized Latch Retraction: Enables remote electric unlocking and electronic dogging of the rods.
- MLRX - Motorized Latch Retraction w/ Request to Exit: Motorized control combined with egress monitoring.
- MLRXLM - MLR w/ Request to Exit & Latchbolt Monitoring: A complete monitoring and control suite.
- MLRLM - Motorized Latch Retraction w/ Latchbolt Monitoring: Combines motorized control with real-time latch status.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series |
| Device Type | Surface Vertical Rod (SVR) |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Door Size | 3'0" x 7'0" (36" x 84") |
| Top Latch | Stainless Steel Pullman Type |
| Bottom Latch | Square Bolt (Standard) |
| Dogging | Hex Key Dogging (Standard) |
| Rod Length | 36" (top) and 36" (bottom) for 7'0" doors |
| Fire Rating | Non-Rated (Panic Hardware) |
| Fasteners | Wood/Machine screws and thru bolts supplied standard |
Standards, Compliance & Installation
- Safety: UL305 Listed for Panic Hardware and compliant with NFPA 101 Life Safety.
- Accessibility: Meets ADA requirements for push-force and ease of operation.
- Vandal Resistance: Robust construction with thru-bolt (sex bolt) mounting ensures a rigid, permanent bond to the door, preventing rod misalignment or hardware sagging.
- Durability: Tested to exceed over one million cycles in high-abuse commercial environments.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Hager Exit Device Prefixes | RX - Request to Exit Switch or RX2 - Dual Request to Exit Switches or LM - Latchbolt Monitoring or RXLM - Request to Exit and Latchbolt Monitoring or AI - Authorized Ingress or RXAI - Authorized Ingress with Key Monitoring or DE - Delayed Egress or OBDE - Onboard Delayed Egress or MLR - Motorized Latch Retraction or MLRX - Motorized Latch Retraction w/ Request to Exit Switch or MLRXLM - Motorized Latch Retraction w/ Request to Exit Switch & Latchbolt Monitoring or MLRLM - Motorized Latch Retraction w/ Latchbolt Monitoring |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 36 Inches |
| Door Height | 7'0" Dr Ht |
