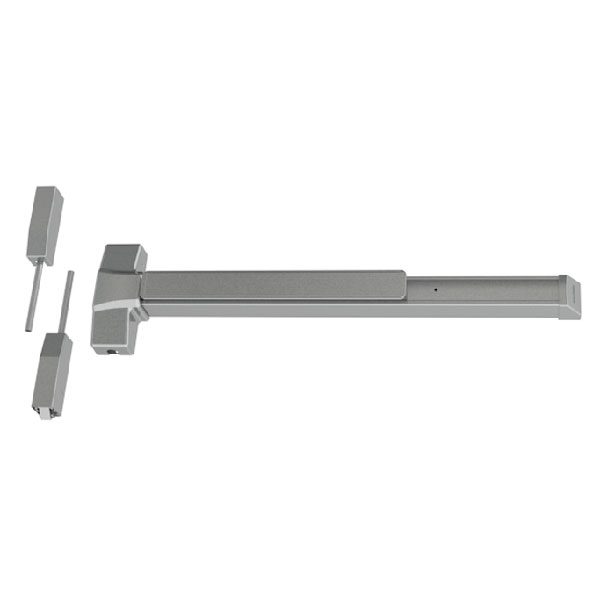

Hager 4501 SVR Exit Device - Non Rated - 3'0"x 8'0" Door
The Hager 4501 SVR is a heavy-duty, Grade 1 Surface Vertical Rod exit device specifically engineered for oversized 36" x 96" (3'0" x 8'0") commercial doors. This panic bar provides secure two-point latching at the top and bottom of the door leaf, making it the premier choice for double-door applications where a center mullion is not desired. As a Non-Rated (Panic Hardware) device, it offers smooth, reliable egress for high-traffic openings in schools, airports, and commercial office towers.
Advanced Two-Point Security for Tall Openings
Designed to accommodate the extra height of an 8-foot door, the Hager 4501 SVR secures the opening at both the head and the floor. The top latch utilizes a stainless steel Pullman-type bolt for consistent engagement, while the bottom rod secures into a floor strike. For convenience during peak business hours, the device features hex key dogging, allowing the push bar to be locked in the retracted position for effortless "push/pull" operation.
Electrified Options & Prefixes
The Hager 4501 SVR can be customized with various electrified prefixes to integrate into modern building management and access control systems:
- RX - Request to Exit Switch: Monitors the internal switch to signal authorized egress.
- RX2 - Dual Request to Exit Switches: Provides two separate monitoring signals for redundancy.
- LM - Latchbolt Monitoring: Notified the system when the rods/latches are retracted or extended.
- RXLM - Request to Exit and Latchbolt Monitoring: Combined monitoring for both egress and latch status.
- AI - Authorized Ingress: Monitors the exterior trim for authorized entry attempts.
- RXAI - Authorized Ingress with Key Monitoring: High-security tracking of both ingress and physical key usage.
- DE - Delayed Egress: Delays door opening for 15-30 seconds to prevent unauthorized exiting or theft.
- OBDE - Onboard Delayed Egress: An all-in-one, self-contained delayed egress solution.
- MLR - Motorized Latch Retraction: Enables remote electric unlocking and electronic dogging of the rods.
- MLRX - Motorized Latch Retraction w/ Request to Exit: Latch retraction combined with egress monitoring.
- MLRXLM - MLR w/ Request to Exit & Latchbolt Monitoring: A complete monitoring and control suite.
- MLRLM - Motorized Latch Retraction w/ Latchbolt Monitoring: Combines motorized control with real-time latch status.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series |
| Device Type | Surface Vertical Rod (SVR) |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Door Size | 3'0" x 8'0" (36" x 96") |
| Top Latch | 1/2" Stainless Steel Pullman Type |
| Bottom Latch | Square Bolt (Retracts during swing) |
| Dogging | Hex Key Dogging (Standard) |
| Fire Rating | Non-Rated (Panic Hardware) |
| Fasteners | Wood/Machine screws and thru bolts supplied standard |
| Handing | Non-Handed (Fully Reversible) |
Standards, Compliance & Durability
- Safety: UL305 Listed for Panic Hardware and compliant with NFPA 101 Life Safety Code.
- Accessibility: Meets ADA requirements for push-force and ease of operation.
- Windstorm: Certified for ANSI A250.13 Severe Windstorm resistance.
- Rigid Installation: Standard thru-bolt (sex bolt) mounting ensures a permanent, secure bond to the door, preventing rod misalignment and hardware sagging on tall, heavy doors.
- Longevity: Tested to exceed one million cycles for reliable performance in high-abuse settings.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Hager Exit Device Prefixes | RX - Request to Exit Switch or RX2 - Dual Request to Exit Switches or LM - Latchbolt Monitoring or RXLM - Request to Exit and Latchbolt Monitoring or AI - Authorized Ingress or RXAI - Authorized Ingress with Key Monitoring or DE - Delayed Egress or OBDE - Onboard Delayed Egress or MLR - Motorized Latch Retraction or MLRX - Motorized Latch Retraction w/ Request to Exit Switch or MLRXLM - Motorized Latch Retraction w/ Request to Exit Switch & Latchbolt Monitoring or MLRLM - Motorized Latch Retraction w/ Latchbolt Monitoring |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 36 Inches |
| Door Height | 8'0" Dr Ht |
