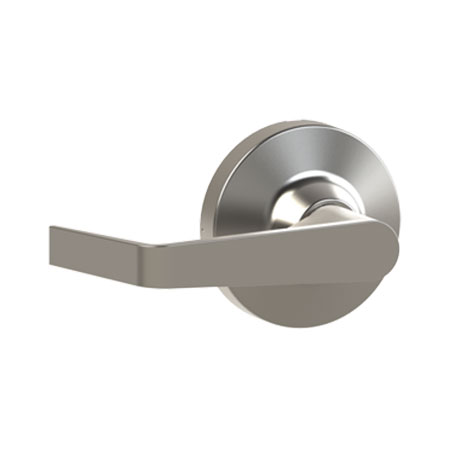

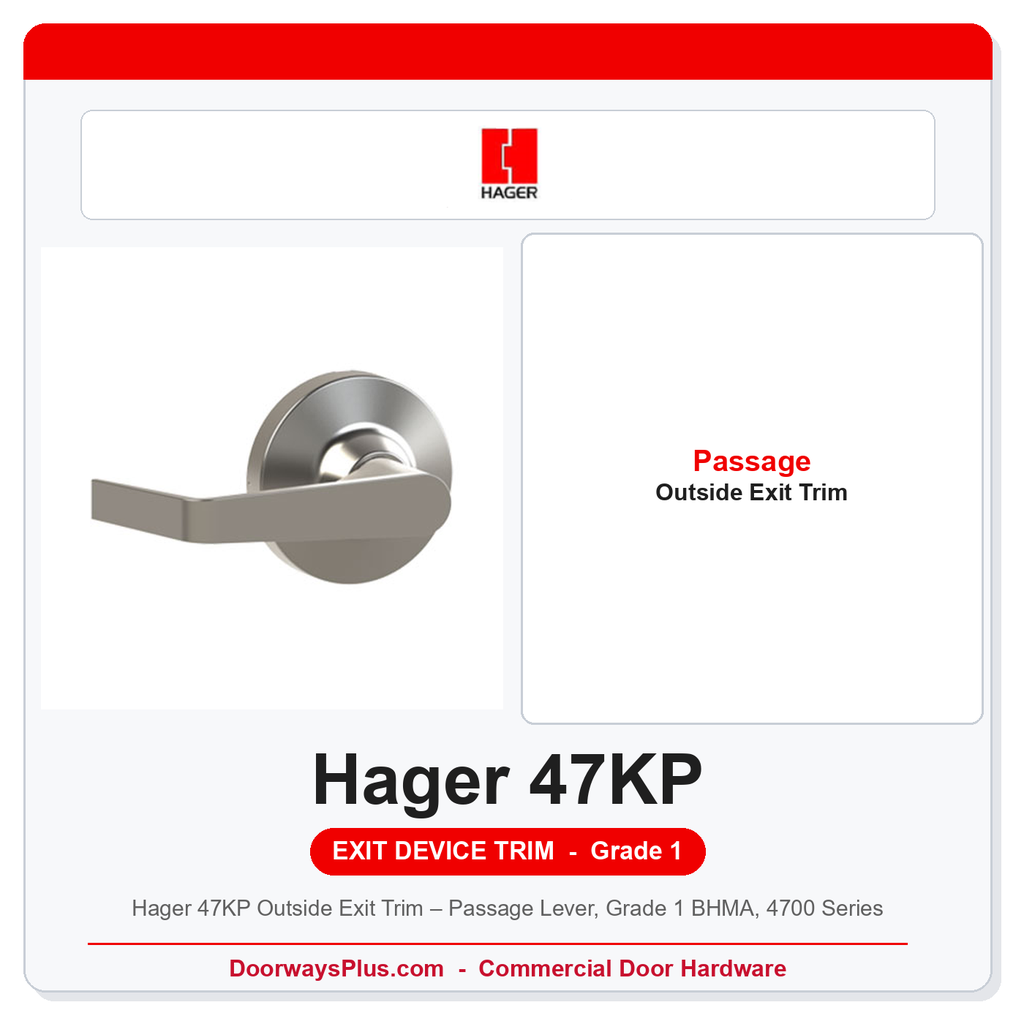

Hager 47KP Passage Lever Trim – Grade 1 Standard Duty for 4700 Series
The Hager 47KP Passage Knob Trim is a robust, standard-duty solution designed for use with Hager 4700 Series Exit Devices. This Passage Function (ANSI 15) trim features a non-locking knob that is always active, providing immediate entry and egress at all times. It is the ideal choice for interior commercial doors, high-traffic corridors, and common areas where security is not required but professional-grade durability is essential.
As a BHMA Certified Grade 1 component, the 47KP is built to withstand the rigors of frequent use in schools, retail spaces, and office environments. The trim features a durable steel body and a solid brass or stainless steel knob, offering a classic tactile feel with industrial-strength performance. Its timeless design ensures it complements any architectural setting while meeting the highest mechanical standards for hardware longevity.
Reliable Performance & High-Strength Mounting
The Hager 47KP is designed for simplicity and reliability. Since it serves as a passage trim, it does not require a cylinder, ensuring maintenance-free operation for years to come. To provide a permanent and stable mount on 1-3/4" thick doors, this trim includes thru bolts as standard hardware. This creates a high-strength, through-the-door connection that prevents the knob assembly from loosening or wobbling, even under heavy daily use.
Key Features
- Passage Functionality: Knob is always operable (ANSI 15); perfect for non-secure egress paths.
- Grade 1 Performance: BHMA certified to meet the highest industry standards for mechanical life.
- Rugged Construction: Steel trim body with a high-quality brass or stainless steel knob.
- Non-Handed Design: Fully reversible in the field for use on both left and right-hand swinging doors.
- Easy Installation: Includes all necessary fasteners for a secure and flush mount.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47KP |
| ANSI Function | 15 (Always Operable / Passage) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Knob Design | Ball Style (Classic) |
| Rose Diameter | 3-1/2" (89 mm) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select the architectural finish at DoorwaysPlus.com that best matches your facility's design:
- Satin Stainless Steel (US32D): A durable, corrosion-resistant finish for modern commercial interiors.
- Sprayed Aluminum (ALM): Matches standard clear anodized aluminum storefront frames.
- Sprayed Dark Bronze (DBZ): A professional, dark finish for traditional architectural styles.
- Bright Brass (US3): A polished, traditional finish for upscale institutional entries.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 695 - Painted, Stat Dark Bronze |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Passage |
| Door Handing | Field Reversible |
