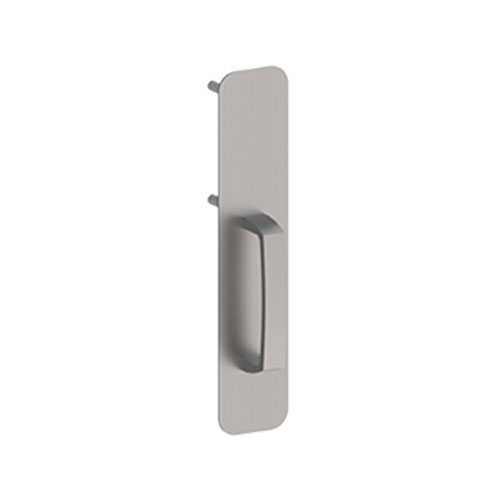

Hager 47PD Dummy Pull Trim – Grade 1 Commercial Exit Pull Handle
The Hager 47PD Dummy Pull Trim is a premium, non-functional handle designed for use with the Hager 4700 Series Exit Devices. This Dummy Function (ANSI 02) trim features a fixed, rigid pull handle that is ideal for doors that are dogged down during business hours or for the inactive leaf of a pair of doors. It provides a consistent, professional aesthetic across your facility while offering the rugged reliability required for light-to-medium commercial environments.
As a BHMA Certified Grade 1 component, the 47PD is engineered for maximum durability. The trim consists of a heavy-duty steel escutcheon and a reinforced pull handle, ensuring it can withstand the constant force of high-traffic use in schools, retail centers, and office buildings. Its low-profile design and ADA compliant grip make it a functional and stylish choice for any commercial entryway.
High-Strength Architectural Integration
The Hager 47PD is specifically crafted to match the footprint and finish of active Hager 4700 Series trims, such as the 47CE or 47NL. This allows for a uniform look on double doors where only one side requires a locking lever. To ensure a permanent and secure mount, the trim is installed using thru bolts, providing a high-strength, through-the-door connection that prevents the handle from loosening or pulling away from the door surface.
Key Features
- Dummy Pull Function: Rigid handle serves as a permanent pull (ANSI 02); perfect for dogged-down devices.
- Grade 1 Performance: BHMA certified to meet the highest mechanical standards for commercial hardware.
- ADA Compliant Grip: Ergonomic pull design ensures easy accessibility for all users.
- Rugged Construction: Steel escutcheon with a reinforced handle for long-term service life.
- Non-Handed Design: Fully reversible for use on both left and right-hand swinging doors.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47PD |
| ANSI Function | 02 (Dummy Trim / Pull) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Escutcheon Size | 2-5/8" x 8" (67 mm x 203 mm) |
| Door Thickness | Standard 1-3/4" (Fits 1-5/8" to 2-1/4" doors) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select from several architectural finishes at DoorwaysPlus.com to maintain a unified look across your facility:
- Satin Stainless Steel (US32D): A durable, low-maintenance finish with superior corrosion resistance.
- Sprayed Aluminum (ALM): The standard choice for modern clear anodized aluminum frames.
- Sprayed Dark Bronze (DBZ): A classic, professional finish for traditional commercial storefronts.
- Matte Black (BLK): A bold, high-contrast finish for contemporary architectural designs.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Dummy |
| Trim Design | Grip Pull |
| Door Handing | Field Reversible |
