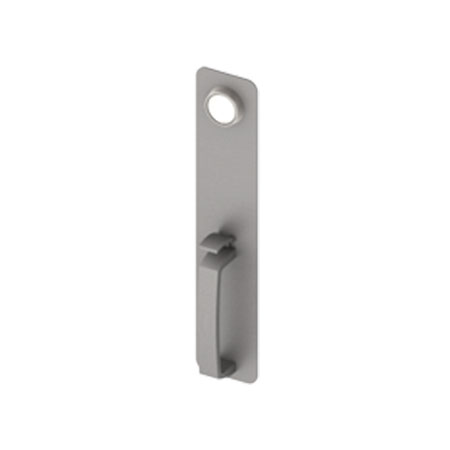

Hager 47PT Classroom Thumbpiece Trim – Grade 1 Escutcheon for 4700 Series
The Hager 47PT Pull Handle Trim is a professional-grade, standard-duty solution designed for use with Hager 4700 Series Exit Devices. This Classroom Function (ANSI 05) trim features a classic thumbpiece design that allows for easy egress and ingress. The key can be used to lock or unlock the thumbpiece; when unlocked, the door can be opened from the outside by simply depressing the thumbpiece, making it ideal for classrooms, meeting halls, and office suites.
As a BHMA Certified Grade 1 component, the 47PT is built to withstand high-frequency use in demanding institutional environments. The trim features a heavy-duty 3" x 11" steel escutcheon plate and a reinforced pull handle, providing a traditional look and a sturdy grip. Its ADA compliant thumbpiece is designed for ease of operation, ensuring that your facility meets all accessibility requirements while maintaining a high level of security.
Versatile Functionality & High-Strength Mounting
The Hager 47PT is a "Less Mortise Cylinder" model, designed to be paired with a Hager 3902 mortise cylinder with a standard cam (sold separately). This allows for seamless integration into your existing master key system. To ensure a permanent, high-strength installation, the trim includes thru bolts as standard hardware, creating a rigid connection through the door that resists sagging and tampering.
Key Features
- Classroom Functionality: Key locks or unlocks the thumbpiece (ANSI 05); ideal for controlled access areas.
- Grade 1 Performance: BHMA certified for maximum durability and long-term commercial life.
- ADA Compliant Thumbpiece: Ergonomic design meets A117.1 accessibility standards.
- Rugged Construction: Features a heavy-duty steel plate and a durable pull handle with a 1-3/4" projection.
- Standard Door Prep: Includes a retaining cup designed for standard 161 door preparations.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47PT |
| ANSI Function | 05 (Entrance by Thumbpiece / Classroom) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Plate Size | 3" x 11" (76 mm x 298.5 mm) |
| Cylinder Requirements | Requires 3902 Mortise Cylinder (Sold Separately) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select from several architectural finishes at DoorwaysPlus.com to match your facility's design:
- Satin Stainless Steel (US32D): Exceptionally durable and corrosion-resistant for high-traffic areas.
- Sprayed Aluminum (ALM): A modern, professional look for contemporary office and school frames.
- Sprayed Dark Bronze (DBZ): A classic, professional finish for traditional commercial storefronts.
- Bright Brass (US3): A polished, traditional finish for upscale institutional entries.
| Door Handing | RHR or LHR |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Exit Device Trim Function | Classroom |
| Trim Design | Grip Pull |
