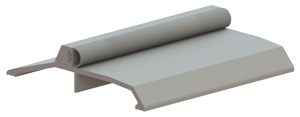

Hager 565S 3-5/8" Lipped Threshold with Vinyl Insert | Mill Aluminum
The Hager 565SAV is a high-performance lipped threshold designed to provide a superior weather seal for exterior door openings. Featuring an integrated vinyl insert, this threshold creates a pressurized seal against the bottom of the door, effectively blocking wind, rain, and debris. Its unique lipped profile makes it the ideal choice for entryways with a step-down at the edge of the opening, as the design ensures the threshold does not extend past the door’s edge, providing a clean and safe finish.
Specialized Design for Vertical Rod Hardware
Beyond standard weatherproofing, the Hager 565S is specifically engineered for use in conjunction with the bottom rods of surface-applied vertical rod exit devices. The lipped structure provides the necessary strike surface and clearance for secure latching in commercial applications. With a 7/8" overall height, this threshold is perfectly suited for doors with a 5/8" undercut, ensuring a snug, energy-efficient fit every time.
Extreme Temperature Resilience
Built to withstand harsh climates, the Hager 565S utilizes a high-grade vinyl seal that remains fully flexible at temperatures as low as -40°F. This prevents the gasket from becoming brittle or cracking during winter months, maintaining the integrity of your building's envelope year-round. The mill finish aluminum construction provides a durable, rust-proof base that stands up to the elements and heavy residential or light-commercial use.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 565S |
| Width | 3-5/8" (92 mm) |
| Overall Height | 7/8" (22 mm) |
| Recommended Undercut | 5/8" (16 mm) |
| Material | Extruded Mill Finish Aluminum |
| Insert Material | High-Flexibility Vinyl |
| Temperature Rating | Flexible to -40° Fahrenheit |
| Fasteners | #10 x 1-1/2" Wood Screws (Included) |
Application Guidelines
- Step-Down Openings: The "no-extension" design is perfect for doors that open onto a lower step or landing.
- Exit Device Compatibility: Recommended for use with surface vertical rod (SVR) exit hardware.
- Traffic Note: This lipped design is not recommended for openings requiring wheelchair access, carts, or dolly traffic. For high-mobility areas, we recommend utilizing a Flat Threshold paired with a Sill Sweep.
- Installation: Furnished with #10 x 1-1/2" wood screws for a secure mount to wood subfloors.
| Length | 36 Inch or 48 Inch or 72 Inch or 96 Inch |
| Brand | Hager |
| Threshold Grade | Commerical- Standard |
| Threshold Type | Lipped |
| Threshold Width | 3-5/8" |
| Threshold Height | 7/8" |
| Door Undercut | 5/8" |
| Insert Material | Vinyl |
