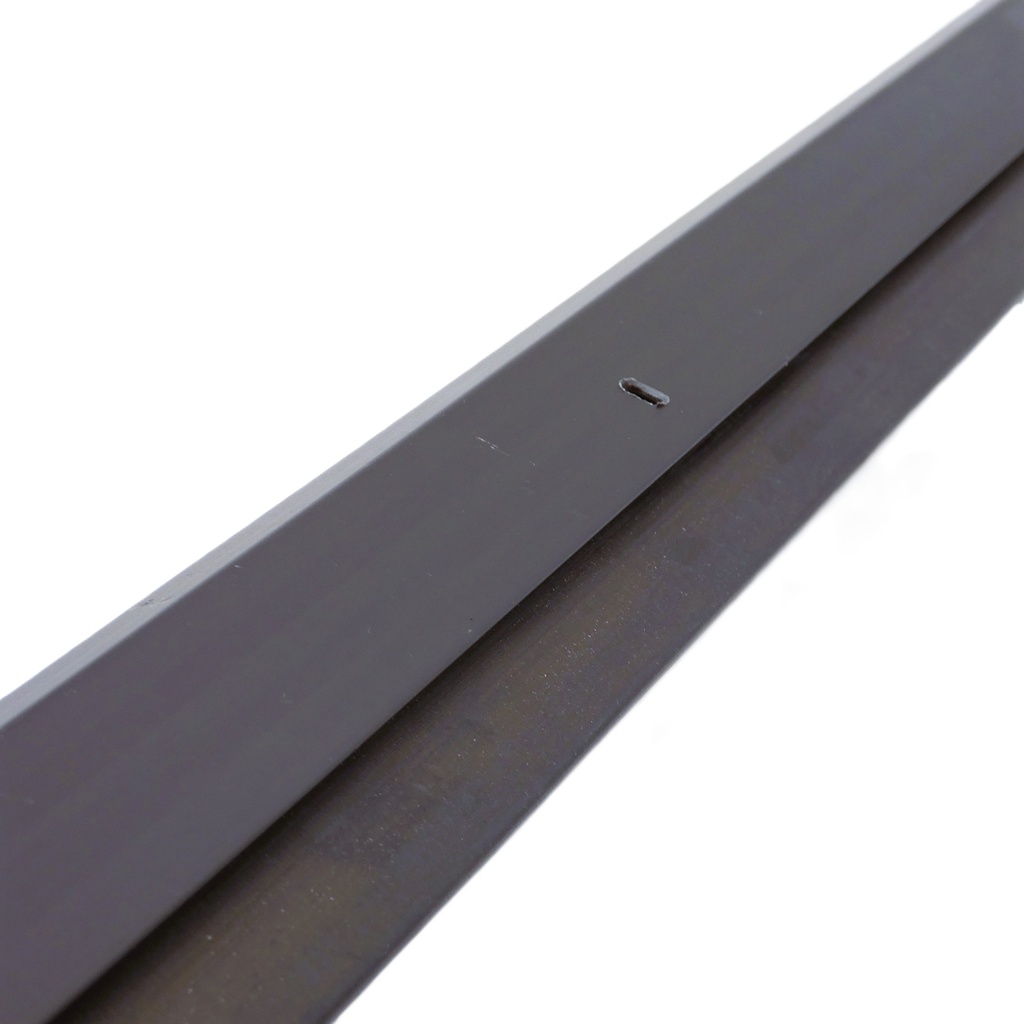

Hager 750S Dark Bronze Aluminum Sill Sweep with Neoprene Seal
The Hager 750S in Dark Bronze Anodized (DBA) is an architectural-grade commercial door sweep designed to provide an elite environmental and smoke barrier at the base of the door. Featuring a robust 1-1/4" aluminum housing and a high-performance neoprene insert, this surface-mounted seal is the professional choice for sealing the gap between the door and the threshold. The Dark Bronze finish provides a sophisticated look that coordinates perfectly with anodized storefronts and modern commercial hardware.
High-Performance Neoprene for Extreme Conditions
The standout feature of the Hager 750S is its premium neoprene gasketing. Unlike standard vinyl, neoprene is engineered to maintain its structural integrity and flexibility in the most demanding climates. It remains fully pliable in temperatures as low as -50°F, ensuring the seal does not crack or fail during extreme winters. Furthermore, neoprene is inherently resistant to high heat, making it an exceptionally durable choice for high-traffic entryways.
Certified Fire Safety and Smoke Control
The Hager 750S is a critical component for life-safety compliance. It is UL Classified as gasketing material for fire doors and has been fire-tested in accordance with UL10C, making it suitable for use on Category H and J doors. Additionally, it meets ASTM E283-91 standards for air and smoke infiltration, providing a vital barrier against the transfer of hazardous fumes in fire-rated corridors, hospitals, and office complexes.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 750S |
| Housing Material | Extruded Aluminum (1-1/4" Height) |
| Finish | Dark Bronze Anodized (DBA) |
| Insert Material | Premium Black Neoprene (19/32" Length) |
| Fire Rating | UL10C Classified (Category H & J) |
| Smoke/Air Standards | ASTM E283-91 |
| Temperature Rating | Flexible to -50° Fahrenheit |
| Adjustment Type | Slotted Holes for Precision Fit |
| Fasteners | Plated #6 x 5/8" Pan Head Steel Screws (Included) |
Key Performance Highlights
- Universal Application: Ideal for use on listed steel frames and classified hollow metal or wood fire doors.
- Precision Adjustability: The housing features slotted screw holes, allowing for easy vertical adjustment to ensure a tight seal against the threshold even if the floor is slightly uneven.
- Weather & Acoustic Barrier: The dense neoprene seal is superior for blocking wind-driven rain, dust, and reducing sound transfer.
- Coordinated Aesthetics: Furnished with screws plated to match the Dark Bronze finish for a seamless, professional installation.
| Length | 36 Inch or 48 Inch |
| Brand | Hager |
| Insert Material | Neoprene |
| Material Length | 1/2" |
| Housing Length | 1-1/4" |
| Housing Finish | Dark Bronze |
| Bottom Weatherseal Type | Sill Sweep |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
