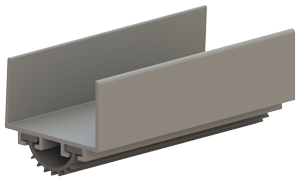

Hager 779S Door Bottom with Vinyl Insert, 3 or 4 feet, Aluminum Finish
Mill finish aluminum, vinyl with fins
5/8" clearance required between floor or threshold (flat surface) to the underside of the door for best performance
Aluminum housing wraps around the bottom of the door (for 1 3/4" thick doors)
Slotted screw holes for adjustment
Screw applied from one side of the door bottom, furnished with zinc plated # 6 x 5/8" pan head steel screws
Vinyl remains flexible to -40 degree Fahrenheit.
UL Info:
Gasketing Materials for fire doors as classified by Underwriters Laboratory's Inc.
Fire Tested in accordance with UL10C
For use with Category J Doors
Gasketing is made from vinyl which maintains excellent flexibility at low temperatures and resists high heat.
| Length | 36 Inch or 48 Inch |
| Brand | Hager |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Housing Finish | Aluminum |
| Fire Rated | Fire Rated |
| Bottom Weatherseal Type | Door Bottom |
