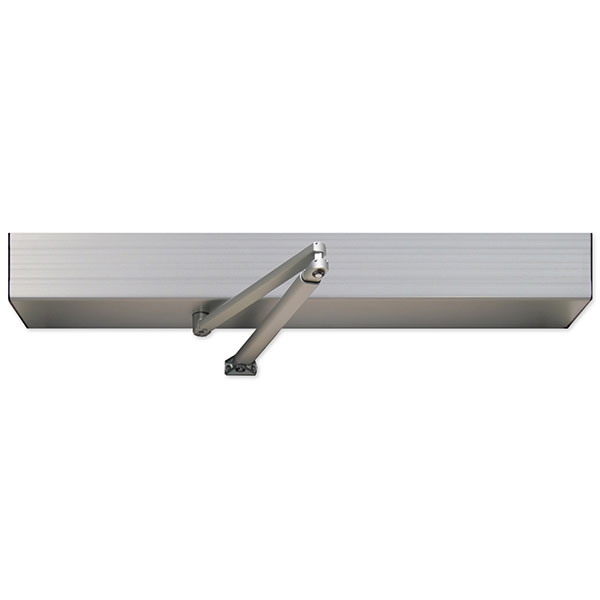

Hager 8318 Single Low Energy Door Operator
Specifications
Adjustable Opening/Closing Speeds: Yes - Exceeds all ADA requirements.
Adjustable Swing Degree: 80° to 140°
Applications
- For use on fire-rated and non-fire-rated openings
- Exterior Doors: Yes (Interior side only)
- Works on both outswing or inswing doors
- Adjustable Opening Angle: Max Degree of Swing Powered -180 degrees (push), 140 (pull)
- Opening Force: <15 lbs. - Exceeds all ADA requirements
- Closing Force: >8 lbs.
Certifications
- ANSI Meets A156.19
- Complies with all U.S. and Canada ADA requirements for low energy operators
- UL/cUL (Fire rating) Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL325 Listed
Closing Force>8 lbs.
Electrical Specifications:
- Power Requirements: 115 VAC 60 HZ
- Current Draw: 0.4 A to 1.2 A (Max)
- Fused Protection: 3.15A fuse
- Onboard Power Supply: 24 VDC 1 A
- Electric Lock Relay: 5.0A @ 28 VDC Form "C" SPDT
Features:
- Non-handed
- Operates as a manual closer with or without power
- Onboard power supply for accessories i.e. electric and magnetic locks, sensors, etc.
- Built-in adjustable door stop for protection against wind or abusive environments
- Blow open function for for smoke ventilation (alarm contacts)
- Equipped with cycle count
- Factory setting for ANSI 156.19 speed requirements AND hold time delay
- Night mode allows the exterior actuator to be deactivated by a rocker switch on the side of the operator
- On/Off/Hold Open Switch: Standard
- Fire Alarm input shunts swing activations until FACP is manually reset
- Memory is flash upgradeable
Finishes: ALM, BLK , DBZ (ships with black arm)
Fire Rating: UL/cUL (Fire rating) Listed for up to 3 hours
Includes
- Appropriate door signage included with each operator
Installation: Single person installation using pre-drilled mounting holes
Length Options: 36”, 42”, 44”, 48” (Non-Standard Sizes Available)
Maximum Door Weight: 350 lbs.
Maximum Door Width: 5'
Notes:
- For High usage openings or abusive environments, Hager recommend using a 7000 Series Overhead Stop.
Operating Temperature: -4°F to + 131°F
Product Description: Low Energy Auto Operator for Single Door Openings
Product Name: Single Operator
Product Number: 8318
Programmable Functionality
- Boost on close - selectable power assist and additional force for the last 10 degrees of closing
- Adjustable Opening Force Limitation
- Adjustable Opening and Closing Speeds
- Adjustable Hold Open Time for Door Activators
Reveal
- Push Arm: 9-3/4" (Reveals between 9-3/4" and 19", arm extension must be ordered separately)
- Pull Arm: 0"
Size: 5" H x 4-1/2" D x Length equals opening width plus 3"
Warranty: 2 Year
Accessories
- 2-679-0905 – Standard Arm Extension ALM
- 2-679-0906 – Standard Arm Extension BLK
- 2-679-0907 – KP EVO Programming Device (Required for advanced programming features.)
| Door Opening Width | 36 Inches or 42 Inches or 44 Inches or 48 Inches |
| General - US Finishes | ALM - Aluminum or DBZ - Dark Bronze or BLK - Black |
| Operator Mounting | Push Side or Pull Side |
| Brand | Hager |
