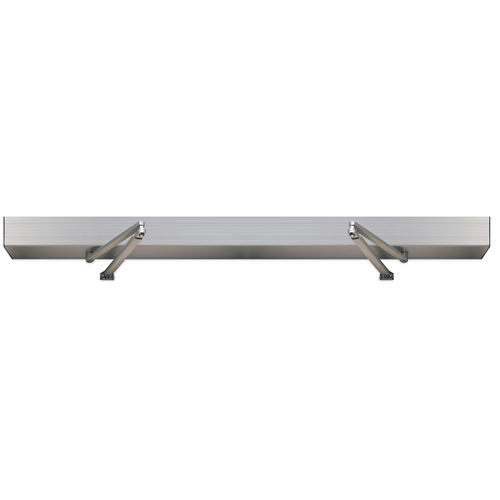

Hager 8321 Double Egress Door Low Energy Door Operator

Hager 8321 Double Door Egress Low Energy Door Operator - Simultaneous Pair

Specifications

Adjustable Opening/Closing Speeds: Yes - Exceeds all ADA requirements.

Adjustable Swing Degree: 80° to 140°

Applications

• For use on fire-rated and non-fire-rated openings
• Exterior Doors: Yes (Interior side only)
• Works on both outswing or inswing doors
• Adjustable Opening Angle: Max Degree of Swing Powered -180 degrees (push), 140 (pull)
• Opening Force: <15 lbs. - Exceeds all ADA requirements
• Closing Force: >8 lbs.

Certifications

• ANSI Meets A156.19
• Complies with all U.S. and Canada ADA requirements for low energy operators
• UL/cUL (Fire rating) Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL325 Listed

Closing Force>8 lbs.

Electrical Specifications

• Power Requirements: 115 VAC 60 HZ
• Current Draw: 0.4 A to 1.2 A (Max) (Each Motor)
• Onboard Power Supply: 24 VDC 1 A (Each Motor)
• Electric Lock Relay Type: Form "C" SPDT (Each Motor)
• Lock Relay Rating: 5.0A @ 28 VDC (Each Motor)
• Fused Protection: 3.15A fuse (Each Motor)

Features:

• Non-handed
• Operates as a manual closer with or without power
• Onboard power supply for accessories i.e. electric and magnetic locks, sensors, etc.
• Built-in adjustable door stop for protection against wind or abusive environments
• Blow open function for smoke ventilation (alarm contacts)
• Equipped with cycle count
• Factory setting for ANSI 156.19 speed requirements AND hold time delay
• Night mode allows the exterior actuator to be deactivated by a rocker switch on the side of the operator
• On/Off/Hold Open Switch: Standard
• Fire Alarm input shunts swing activations until FACP is manually reset
• Memory is flash upgradeable

Finishes: ALM, BLK , DBZ (ships with black arm)

Fire Rating: UL/cUL (Fire rating) Listed for up to 3 hours

Includes

• Appropriate door signage included with each operator

Installation:  Single person installation using pre-drilled mounting holes

Length Options:  72", 84", 88", 96" (Non-Standard Sizes Available)

Maximum Door Weight:  350 lbs.

Maximum Door Width: 5'

Notes:

• For High usage openings or abusive environments, Hager recommend using a 7000 Series Overhead Stop.

Operating Temperature: -4°F to + 131°F

Product Description:   Simultaneous/Independent Pair Operator

Product Name: Single Operator

Product Number: 8319

Programmable Functionality

• Boost on close - selectable power assist and additional force for the last 10 degrees of closing
• Adjustable Opening Force Limitation
• Adjustable Opening and Closing Speeds
• Adjustable Hold Open Time for Door Activators

Reveal

• Push Arm: 9-3/4" (Reveals between 9-3/4" and 19", arm extension must be ordered separately)
• Pull Arm: 0"

Size: 5" H x 4-1/2" D x Length equals opening width plus 3"

Warranty: 2 Year

Accessories

• 2-679-0905 – Standard Arm Extension ALM
• 2-679-0906 – Standard Arm Extension BLK
• 2-679-0907 – KP EVO Programming Device (Required for advanced programming features.)
