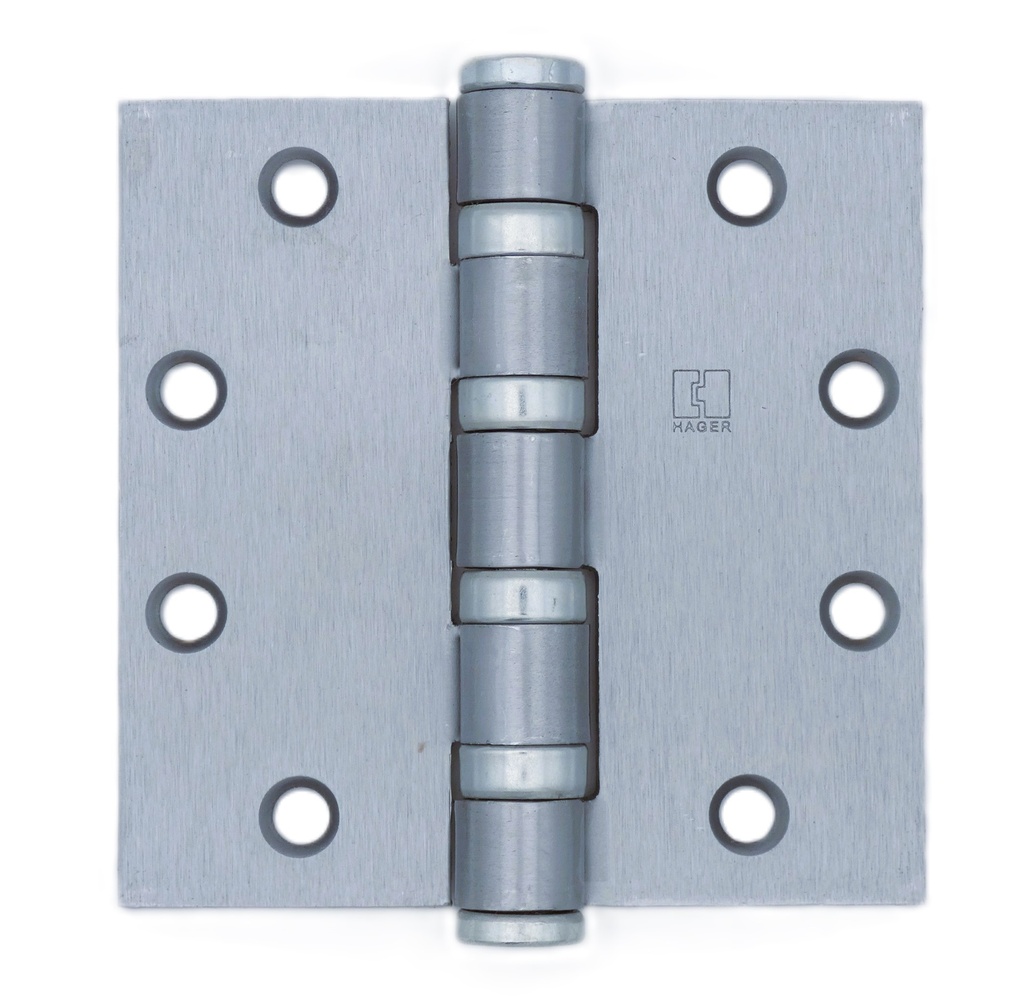

Hager BB1168 4.5" x 4.5" Heavy Weight 5 Knuckle Ball Bearing Hinge, Steel with Plated Finish
Installation Details:
- Furnished standard with all wood screws (1-1/4" x 12 FPHW) and all machine screws (1/2" 12-24 FPHM)
- Hinges are .180 thickness, For 1 3/4" door thickness. For use on heavy weight doors or doors requiring high frequency service.
Material: Steel with Steel pin
Standards Compliance:
- ANSI A8112. Meets industry standards ANSI/BHMA A156.1, ensuring top-tier quality and reliability in performance. These standards, set by the American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA), confirm that the hinge is designed to meet rigorous benchmarks for durability and functionality. By adhering to these recognized standards, you can trust that this product delivers exceptional performance, making it a reliable choice for your needs.
Hinge Corners: Square
Features of the Hager BB1168 NRP 4.5″ x 4.5″ Heavy Weight Ball Bearing Hinge
If you're in need of a robust and reliable hinge for heavy-weight doors, the Hager BB1168 NRP might be the perfect solution. Here's a breakdown of its standout features:
- Heavy Weight Capacity: With a .180 gauge design, it's built to withstand the rigorous demands of heavy doors, providing longevity and stability.
- Ball Bearings: Equipped with four ball bearings, this hinge offers smooth operation even during high-frequency use, making it ideal for environments with frequent door movement.
- Full Mortise Configuration: The hinge is designed for full mortise installation, allowing it to seamlessly integrate with the door for a clean look and effective function.
- Fire Rated: It meets UL standards and is certified for use on fire-rated door assemblies for up to three hours, complying with NFPA80 requirements to ensure safety in emergency situations.
- Variety of Finishes: Available in multiple finishes including Black, Prime Coat, Bright Brass, Satin Brass, Satin Bronze, Oil Rubbed Bronze, Satin Nickel, Bright Chrome, and Satin Chrome, this hinge can match or complement nearly any design aesthetic.
- ANSI/BHMA Certified: This hinge meets the ANSI/BHMA A156.1 standards, ensuring it meets a high level of performance and durability.
- Five Knuckle Design: The five knuckle style offers additional support and stability, distributing the door’s weight more effectively and ensuring smoother operation.
- Non-rising removable pin with button tip and plug
In summary, the Hager BB1168 NRP 4.5" x 4.5" hinge is engineered for demanding applications, offering exceptional durability, operational smoothness, and compliance with safety regulations. Whether for commercial or residential use, it’s a reliable choice for door hardware.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
