Hager BB1168 5" x 4.5" Heavy Weight Ball Bearing Hinge

Price:

36.91


Hager BB1168 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge
Hager BB1168 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge
31.50
31.50
Hager BB1168 NRP 5" x 4.5" Heavy Weight Ball Bearing Hinge
Hager BB1168 NRP 5" x 4.5" Heavy Weight Ball Bearing Hinge
39.79
39.79

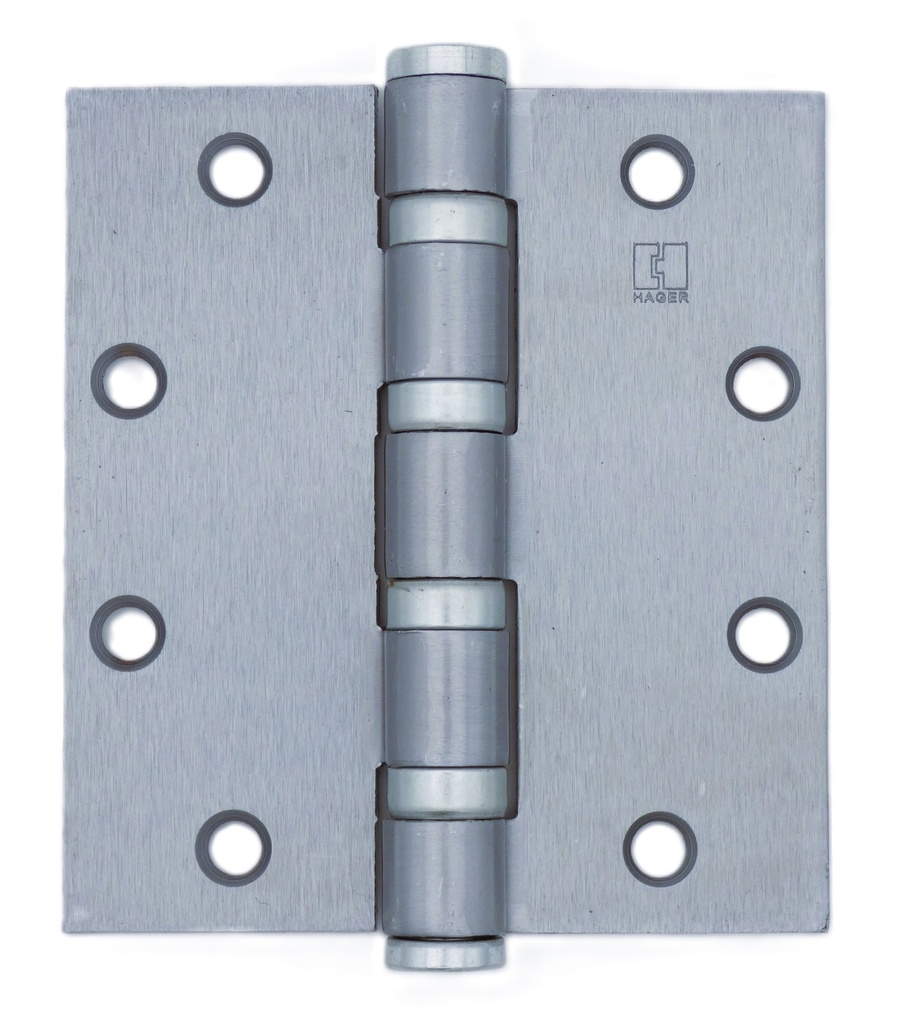

Hager BB1168 5" x 4.5" Heavy Weight Ball Bearing Hinge

https://www.doorwaysplus.com/web/image/product.template/796/image_1920?unique=0e2ccfc

Hager BB1168 5.0" x 4.5" Heavy Weight Ball Bearing Hinge

36.91 36.910000000000004 USD 36.91

36.91

Not Available For Sale


  • General - US Finishes
  • Brand
  • Hinge Height
  • Hinge Width
  • Hinge Grade/Thickness
  • Hinge Type
  • Hinge Options
  • Base Material
  • Hinge Corners

This combination does not exist.


Share :

Hager BB1168 5.0" x 4.5" Heavy Weight Ball Bearing Hinge

*** 5" height x 4 1/2" width ***


  • Furnished standard with  1/2 wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
  • Hinges are .190 thickness, For 1 3/4" door thickness. For use on heavy weight doors or doors requiring high frequency service.

Material:

  • Steel with Steel pin
  • Non-rising removable pin with button tip and plug
  • Four ball bearings

ANSI A8111



General - US Finishes US26D - Satin Chrome or US10 - Satin Bronze or US10B - Oil Rubbed Bronze
Brand Hager
Hinge Height 5.0" Hi
Hinge Width 4.5" Wi
Hinge Grade/Thickness Heavy Wt .180 to .190
Hinge Type Full Mortise
Hinge Options Ball Bearing
Base Material Steel
Hinge Corners Square
